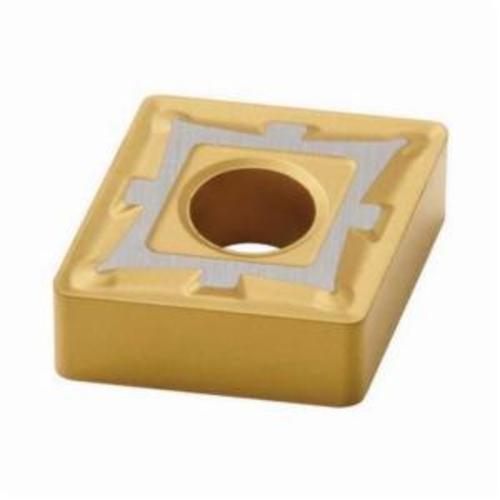

Seco SECOT-37351 Turning Insert ANSI Code: CNMG432-M3 TP200 Insert Size: 120408

Product Description

The Seco SECOT-37351 is a turning insert designed for various machining applications. This insert features ANSI code CNMG432-M3 TP200, making it suitable for steel material. The insert's diamond shape and P material grade provide durability and precision during cutting tasks.

• Maximum Depth of Cut: 5.25 mm
• Inscribed Circle: 12.7 mm
• Thickness: 4.76 mm

Product Highlights

This product is well-suited for medium applications and is part of Seco's extensive line of cutting tools.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 37351

Technical Specifications

• ANSI Code: CNMG432-M3 TP200
• Chipbreaker: M3
• Corner Radius: 0.8 mm
• Finish: CVD-TiCN+Al2O3+TiN Coated
• Hole Diameter: 5.15 mm
• ISO Code: CNMG120408-M3 TP200

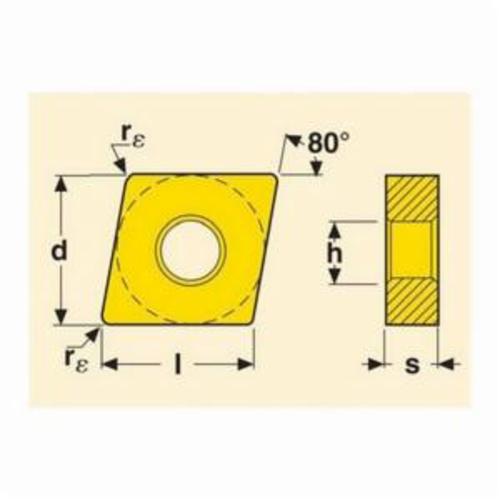

• Included Angle: 80 deg
• Inscribed Circle: 12.7 mm
• Maximum Depth of Cut: 5.25 mm
• Thickness: 4.76 mm
• Insert Style: CNMG
• Material Grade: P
• Insert Size: 120408
• Shape: Diamond
• Seat Size: 12
• Rake: Negative/Positive
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
