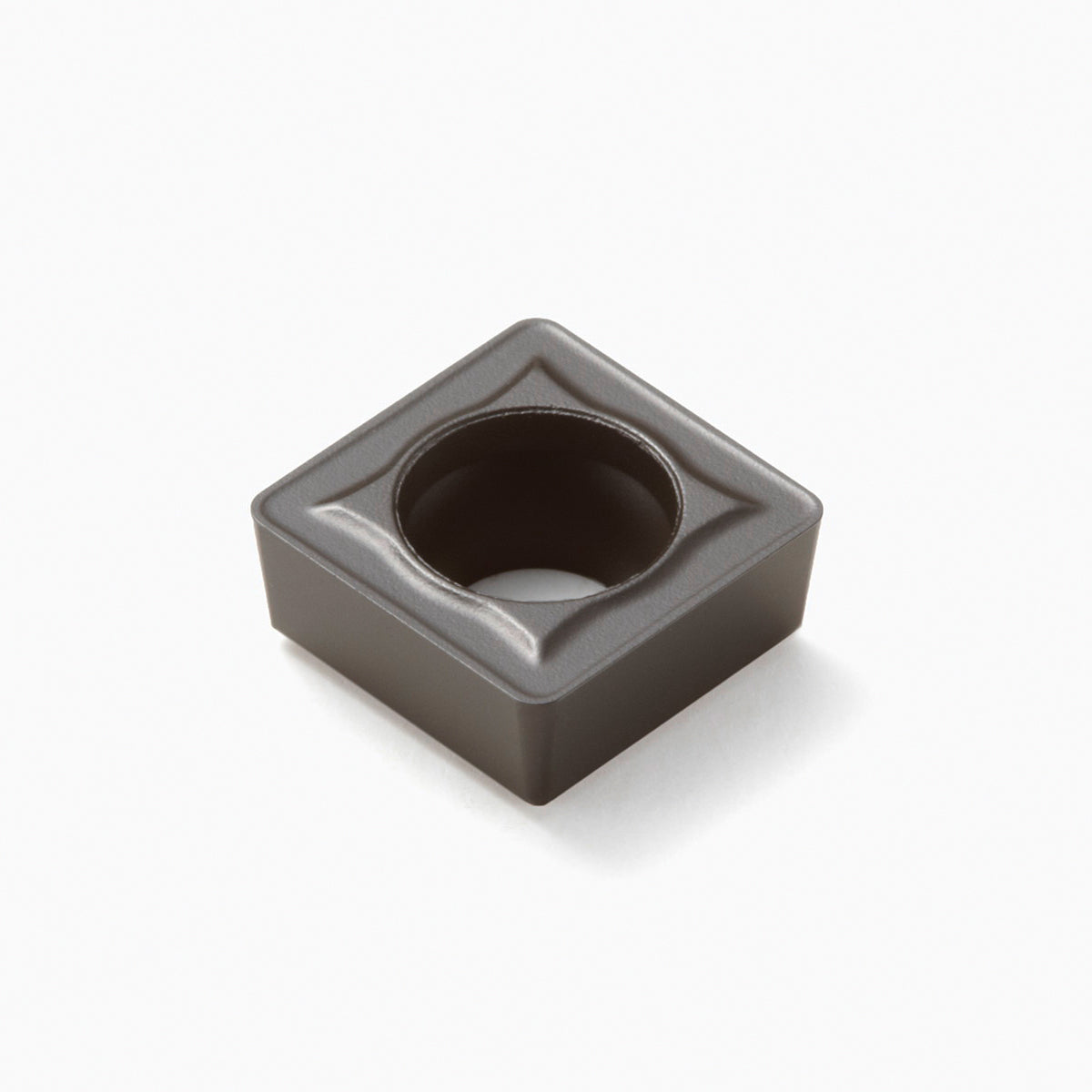

Seco SECOT-34800 Perfomax Peripherical Indexable Drill Insert

Product Description

The Seco SECOT-34800 is an indexable drill insert designed for efficient hole drilling. Made from carbide, this insert features a squared shape with four cutting edges for longevity and effectiveness. The drill offers compatibility with various insert grades and has a TiCN plus Al2O3 Duratomic coating for enhanced performance.

• Suited for high-speed drilling in steel and cast iron.
• Features a unique chip flute design for improved chip evacuation.
• Available in multiple grades featuring Seco's advanced Duratomic technology.

Product Highlights

This indexable drill insert is ideal for uninterrupted, high-productivity operations in various applications.

Product Information

Standard Information

• Brand: Seco Tools
• Manufacturer Part Number: 02590858

Technical Specifications

• ANSI Code: SCGX120408-P2DP2000
• Chipbreaker: P2
• Corner Radius: 0.8 mm
• Finish: TiCN+Al2O3 Duratomic Coated
• Included Angle: 90 deg
• Length: 12.7 mm
• Material: Carbide
• Series: Perfomax
• Type: Peripherical
• Width: 12.7 mm
• Shape: Squared
• Insert Size: 120408
• Insert Style: SCGX
• Thickness: 4.8 mm
• Inscribed Circle: 12.7 mm
• Material Grade: C6
