Seco SECOT-33229 Seco 02575415 MDT Double End Turning Insert Power 16 Seat LCMF160504-0500-FT CP200

Product Description

Seco 02575415 MDT Double End Turning Insert is designed for reliability in machining stainless steel, super alloys, and titanium. The MPN is SECOT-33229. It features a double-end design, making it versatile for various applications.

• ANSI Code: LCMF160504-0500-FT CP200
• Relief Angle: Seven degrees
• Material: Carbide

Product Highlights

This turning insert is optimized for fine turning and deep grooving tasks.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 02575415

Technical Specifications

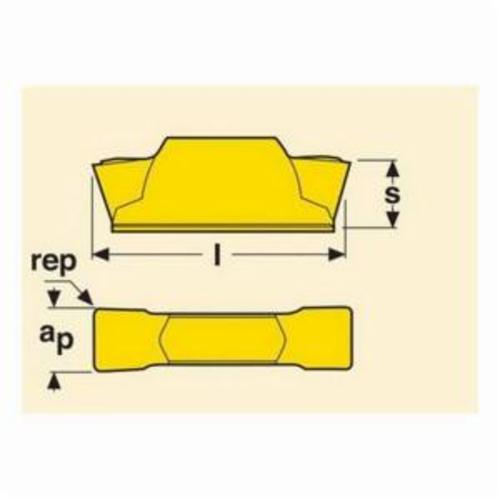

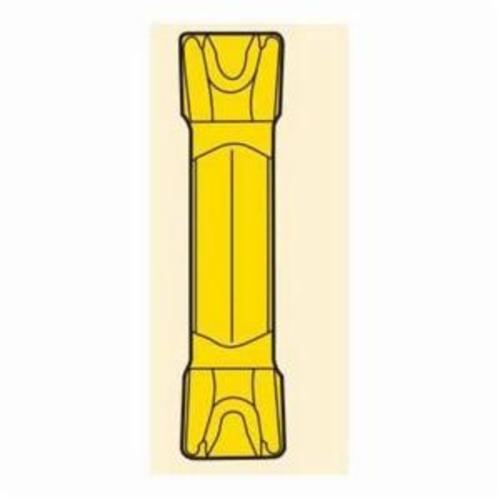

• Insert Type: Double End
• Insert Shape: Rectangle
• Thickness: 4.5 mm
• Width: 5 mm
• Length: 15.9 mm
• Material Grade: M, S
• Chipbreaker: FT
• Corner Radius: 0.4 mm
• Finish: PVD-TiAlN+TiN Coated
• Relief Angle: Seven degrees
• Neutral Cutting Direction
• For Use On: Stainless Steel, Super Alloys, and Titanium
• Seat Size: 16
• Insert Style: LCMF
• Insert Size: 1605
