Seco SECOT-33224 MDT Double End Turning Insert ANSI Code LCMF160302-0300-FT CP200

Product Description

The Seco SECOT-33224 MDT Double End Turning Insert is designed for various machining applications. This tool has a robust structure that supports fine turning and deep grooving tasks. It is suitable for working with stainless steel, super alloys, and titanium. The insert is recognized for its reliability and performance in demanding conditions.

• Double end design for extended tool life
• Material: Carbide with PVD-TiAlN+TiN coating for durability
• Neutral cutting direction with a seven-degree relief angle

Product Highlights

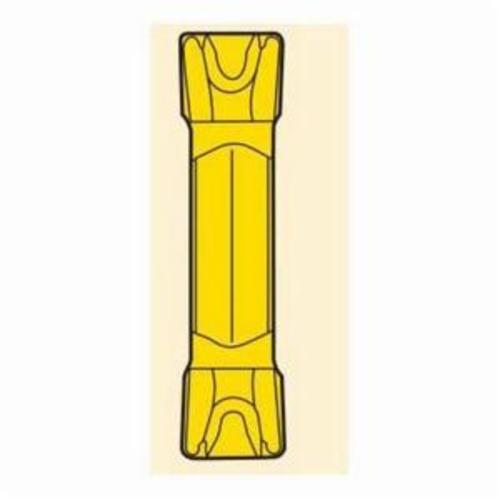

This turning insert features a rectangle shape with a corner radius of 0.2 mm and is equipped with an FT chipbreaker for efficient cutting.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-33224

Technical Specifications

• ANSI Code: LCMF160302-0300-FT CP200
• ISO Code: LCMF160302-0300-FT CP200
• Material: Carbide
• Finish: PVD-TiAlN+TiN Coated

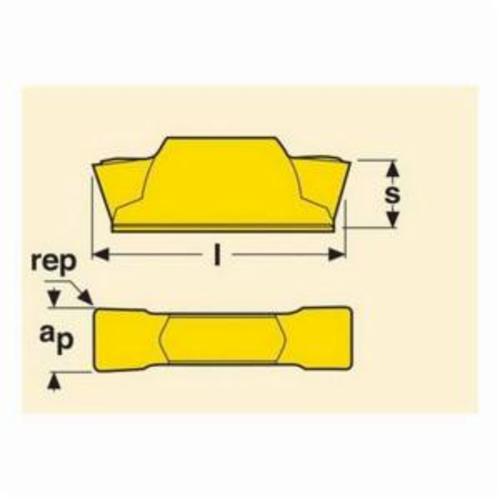

• Length: 15.9 mm
• Width: 3 mm
• Thickness: 4.5 mm
• Corner Radius: 0.2 mm
• Relief Angle: 7 deg
• Insert Style: LCMF
• Insert Size: 1603
• Seat Size: 16
• Cutting Direction: Neutral
• For Use On: Stainless Steel, Super Alloys and Titanium
