Seco SECOT-19616 Turning Insert Power 09T308

Product Description

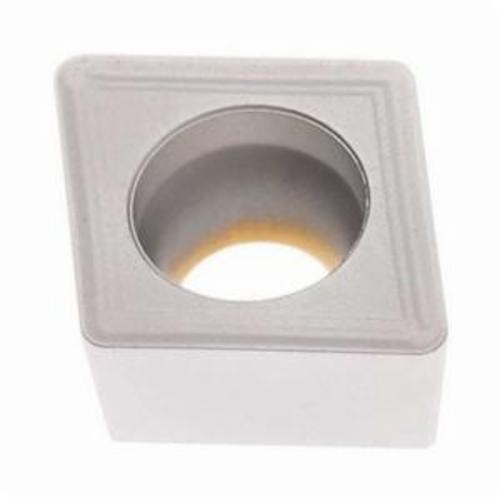

Seco SECOT-19616 is a turning insert designed for efficient machining. This insert features a diamond shape and is suitable for various steel applications. The insert is manufactured with precision to deliver reliable performance in medium applications.

• ANSI code: CCMT32.52-M3 TP2501
• Material grade: P, for steel
• Thickness: 3.97 mm with a maximum depth of cut of 3.5 mm

Product Highlights

This turning insert includes a neutral cutting direction and is ideal for both positive and negative rake operations.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-19616

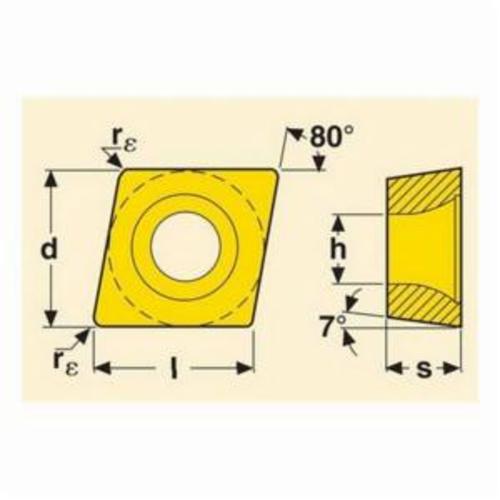

Technical Specifications

• ANSI Code: CCMT32.52-M3 TP2501
• ISO Code: CCMT09T308-M3 TP2501

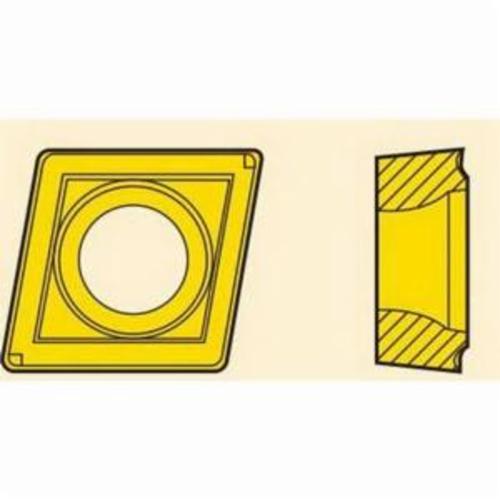

• Shape: Diamond
• Inserted Size: 09T308
• Hole Diameter: 4.5 mm
• Corner Radius: 0.8 mm
• Thickness: 3.97 mm
• Maximum Depth of Cut: 3.5 mm
• Inscribed Circle: 9.5 mm
• Included Angle: 80 degrees
• Relief Angle: 7 degrees
• Chipbreaker: M3
• Cutting Direction: Neutral
• Finish: CVD-TiCN+Al2O3 Coated
• For Use On: Steel
• Material Grade: P
• Rake: Negative/Positive
• Seat Size: 09
