Seco SECOT-18684 Seco 02960778 Turning Insert Power Size 270612

Product Description

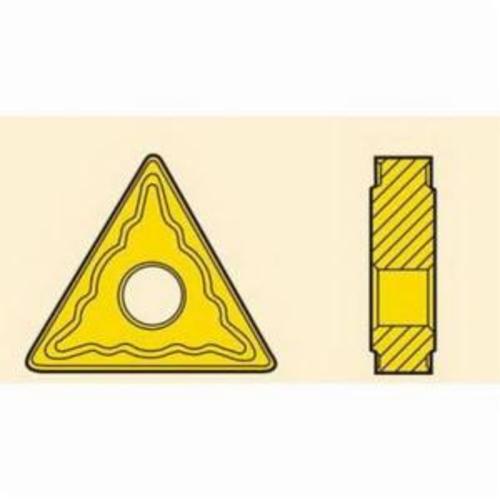

The Seco SECOT-18684 Seco 02960778 Turning Insert is designed for precision machining. It features an ANSI code of TNMG543-MR7 TP2501. This triangular insert is suitable for use on steel and is part of the TNMG insert family.

• Material Grade: P
• Included Angle: 60 degrees
• Maximum Depth of Cut: 7 mm

Product Highlights

This turning insert is made from carbide, coated with CVD-TiCN+Al2O3, providing durability and efficiency. It includes a MR7 chipbreaker and a corner radius of 1.2 mm for enhanced performance during medium and roughing applications.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-18684

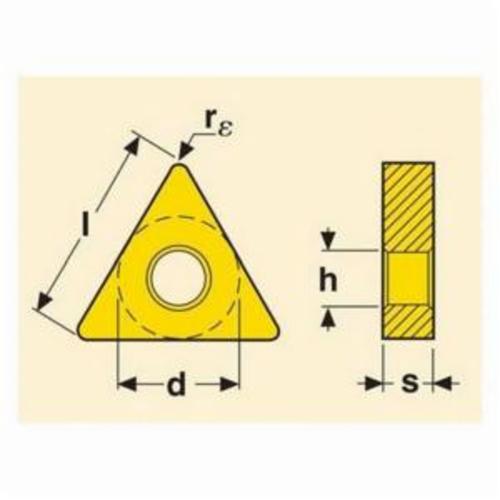

Technical Specifications

• ANSI Code: TNMG543-MR7 TP2501
• ISO Code: TNMG270612-MR7 TP2501
• Chipbreaker: MR7
• Corner Radius: 1.2 mm
• Hole Diameter: 6.35 mm
• Inscribed Circle: 15.88 mm
• Length: 27.5 mm
• Thickness: 6.35 mm
