Seco SECOT-18487 Seco 02960758 Turning Insert Power 22 mm Replacement MPN

Product Description

The Seco Turning Insert, MPN SECOT-18487, is designed for precision machining on steel materials. This triangular insert features a maximum depth of cut of five point two five millimeters and an inscribed circle of twelve point seven millimeters. It is built with a neutral cutting direction and is suitable for a variety of machining applications.

• Triangular shape with ANSI code TPU433 TP2501
• Manufactured from carbide with CVD-TiCN+Al2O3 coating
• Ideal for finishing, medium-rough machining, and rough machining

Product Highlights

This insert is appropriate for professionals looking to enhance their cutting tool capabilities. With a corner radius of one point two millimeters and a relief angle of eleven degrees, it provides effective performance in demanding environments.

Product Information

Standard Information

• Brand: Seco Tools
• Material: Carbide

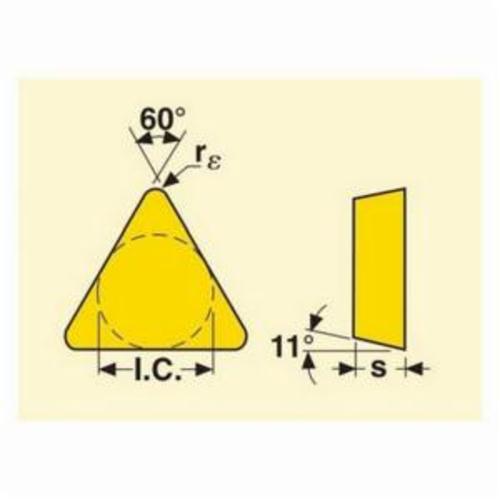

Technical Specifications

• ANSI Code: TPU433 TP2501
• ISO Code: TPUN220412 TP2501
• Corner Radius: 1.2 mm
• Included Angle: 60 deg
• Relief Angle: 11 deg
• Thickness: 4.76 mm
• Length: 22 mm
• Maximum Depth of Cut: 5.25 mm
• Material Grade: P
• Insert Style: TPUN
• Insert Size: 220412
• Cutting Direction: Neutral
• For Use On: Steel
