Seco SECOT-17925 Turning Insert, ANSI Code: TPU432 TP2501

Product Description

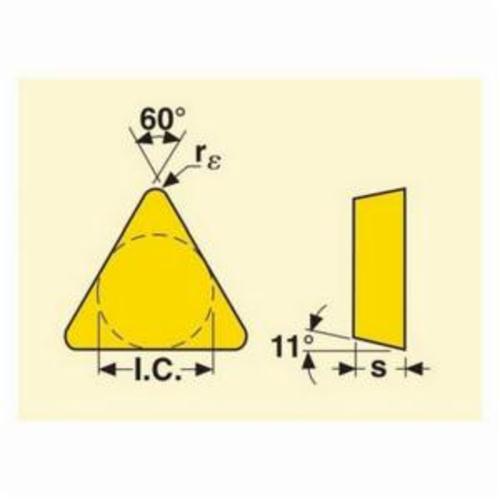

The Seco SECOT-17925 is a turning insert designed for machining applications on steel. It features a triangular shape with a maximum depth of cut of five point two five millimeters. The insert has a twelve point seven millimeter inscribed circle and a thickness of four point seven six millimeters.

• ANSI Code: TPU432 TP2501
• Material: Carbide with CVD-TiCN+Al2O3 coating
• Includes cutting angles of sixty degrees and relief angle of eleven degrees

Product Highlights

This turning insert is suitable for finishing, medium-rough, and rough machining tasks. Its design allows for neutral cutting, making it effective for a range of applications.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-17925

Technical Specifications

• Insert Size: 220408
• Shape: Triangular
• Corner Radius: 0.8 mm
• Included Angle: 60 deg
• Relief Angle: 11 deg
• Thickness: 4.76 mm
• Maximum Depth of Cut: 5.25 mm
• For Use On: Steel
