Seco SECOT-17885 Seco 02960704 Turning Insert Power 22 mm Replacement MPN

Product Description

Seco SECOT-17885 Turning Insert is designed for precision machining applications. This insert is a TPUN style insert with a triangular shape, ideal for use on steel.

• Maximum depth of cut: 5.25 mm
• Manufacturer's grade: TP2501
• Material: Carbide with CVD-TiCN+Al2O3 coating

Product Highlights

This turning insert is well-suited for finishing and medium to rough machining tasks.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-17885

Technical Specifications

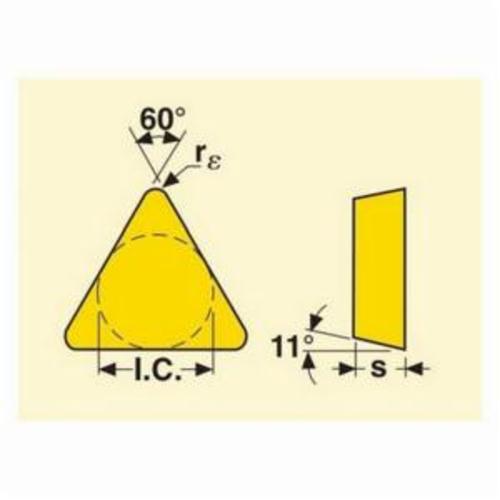

• ANSI Code: TPU431 TP2501
• Corner Radius: 0.4 mm
• Finish: CVD-TiCN+Al2O3 Coated
• ISO Code: TPUN220404 TP2501
• Included Angle: 60 deg
• Inscribed Circle: 12.7 mm
• Length: 22 mm
• Maximum Depth of Cut: 5.25 mm
• Relief Angle: 11 deg
• Thickness: 4.76 mm
• Insert Style: TPUN
• Material Grade: P
• Insert Size: 220404
• Shape: Triangular
• Seat Size: 22
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
