Seco SECOT-16794 Seco 02960604 Turning Insert, ANSI Code: TNMM433-R4 TP2501

Product Description

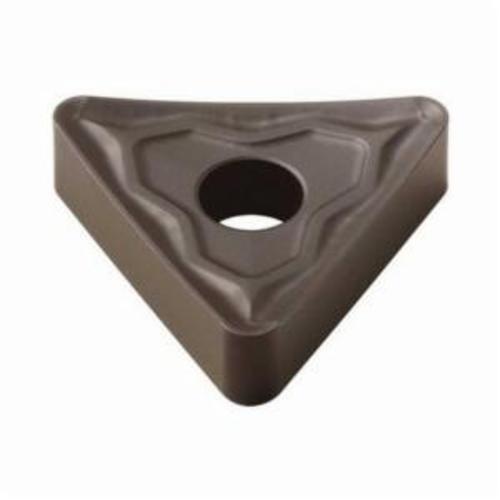

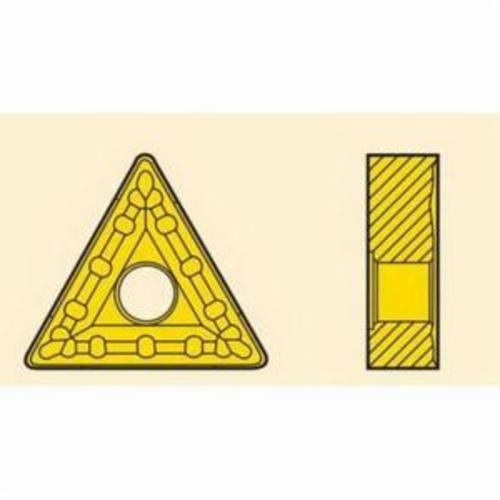

Seco introduces the SECOT-16794 Turning Insert, designed for efficient metalworking. This insert features a triangular shape and is suitable for various applications in steel machining. Its specific ANSI code is TNMM433-R4 TP2501.

• Compatible with negative rake setups.
• Manufactured from carbide for durability.
• Ideal for roughing applications.

Product Highlights

This turning insert provides excellent performance in roughing operations and is suitable for machining applications on steel.

Product Information

Standard Information

• Manufacturer: Seco Tools
• Material Grade: P

Technical Specifications

• ANSI Code: TNMM433-R4 TP2501
• ISO Code: TNMM220412-R4 TP2501
• Insert Style: TNMM
• Corner Radius: 1.2 mm
• Finish: CVD-TiCN+Al2O3 Coated
• Hole Diameter: 5.15 mm
• Included Angle: 60 deg
• Maximum Depth of Cut: 5.25 mm
• Relief Angle: 0 deg
• Inscribed Circle: 12.7 mm
• Length: 22 mm
• Seat Size: 22
• Rake: Negative
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
