Seco SECOT-16097 Seco 02960485 Turning Insert ANSI Code: CNMG432-M5 TP2501

Product Description

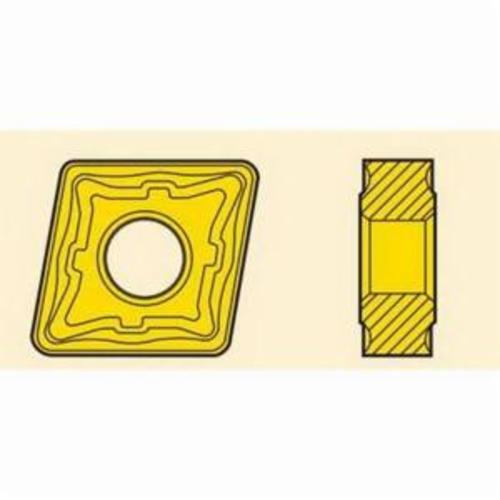

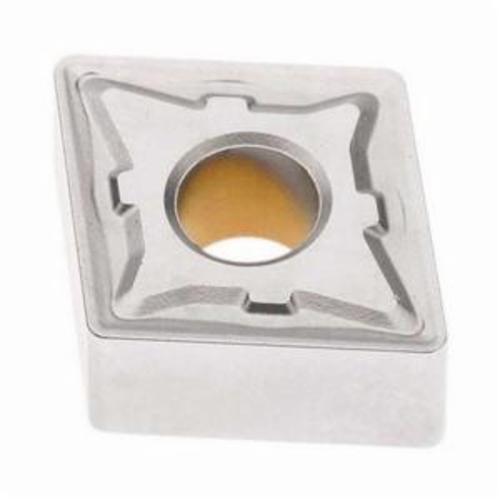

Seco SECOT-16097 is a turning insert designed for use in various applications. The insert is made from carbide and features a diamond shape, making it suitable for cutting steel. It has a maximum depth of cut of five point twenty-five mm and an inscribed circle of twelve point seven mm.

• Diamond shape for versatile cutting applications
• Compatible with M5 chipbreaker
• Suitable for use on steel materials

Product Highlights

Utilize this Seco turning insert for efficient machining in medium applications.

Product Information

Standard Information

• Brand: Seco
• Manufacturer's Grade: TP2501

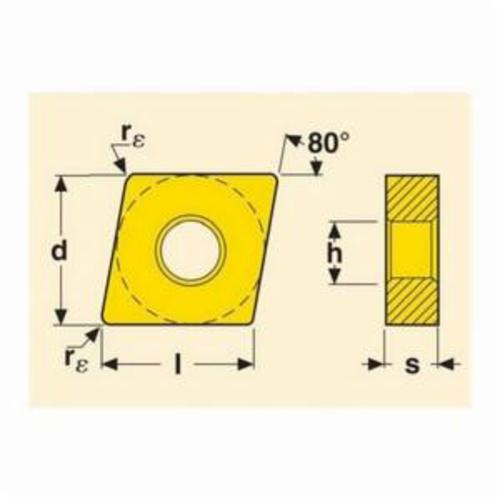

Technical Specifications

• ANSI Code: CNMG432-M5 TP2501
• ISO Code: CNMG120408-M5 TP2501
• Chipbreaker: M5
• Corner Radius: 0.8 mm
• Hole Diameter: 5.15 mm
• Inserted Circle: 12.7 mm
• Maximum Depth of Cut: 5.25 mm
• Thickness: 4.76 mm
• Included Angle: 80 deg
• Relief Angle: 0 deg
• Material Grade: P
• Insert Size: 120408
• Shape: Diamond
• Seat Size: 12
• Rake: Negative/Positive
• Cutting Direction: Neutral
• For Use On: Steel
