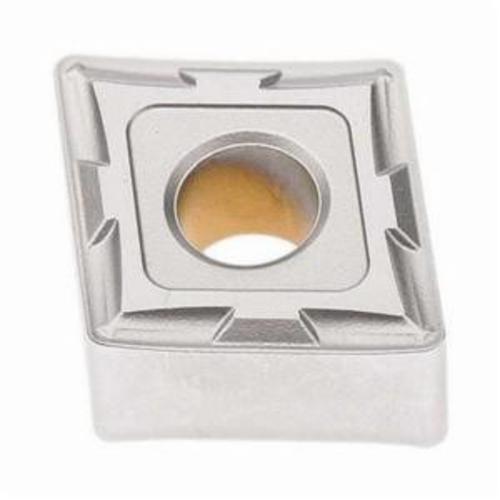

Seco SECOT-15051 Turning Insert CNMG431-MF2 TP2501 120404 Insert

Product Description

Seco Turning Insert with MPN SECOT-15051 is designed for use in metalworking applications. This insert features a diamond shape which helps in effective cutting of steel. Its unique design allows for precision in turning operations.

• ANSI Code: CNMG431-MF2 TP2501
• Maximum depth of cut: 5.25 mm
• For use on: Steel

Product Highlights

This turning insert is suitable for medium and finishing applications. Its carbide composition ensures durability and performance during machining tasks.

Product Information

Standard Information

• Brand: Seco
• Material Grade: P

Technical Specifications

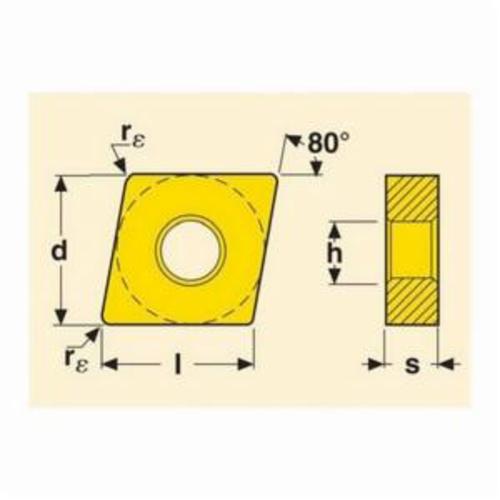

• Insert Style: CNMG
• Inscribed Circle: 12.7 mm
• Thickness: 4.76 mm
• Corner Radius: 0.4 mm
• Included Angle: 80 deg
• Relief Angle: 0 deg
• Hole Diameter: 5.15 mm
• Maximum Depth of Cut: 5.25 mm
