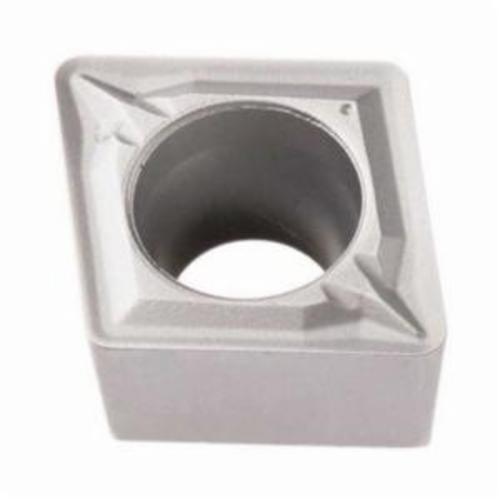

Seco SECOT-14251 Seco 02956309 Turning Insert, ANSI Code: CCMT32.52-MF2 TP2501

Product Description

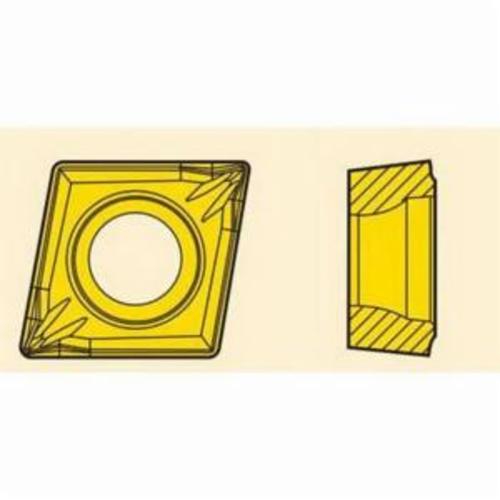

Seco Turning Insert, MPN SECOT-14251, is designed for use on steel. The insert features a diamond shape with a maximum depth of cut of three point five millimeters and an inscribed circle of nine point five millimeters.

• Material: Carbide with CVD-TiCN+Al2O3 coating
• ANSI Code: CCMT32.52-MF2 TP2501
• Insert Style: CCMT

Product Highlights

Features a negative/positive rake, neutral cutting direction, and is suitable for medium and finishing applications.

Product Information

Standard Information

• Brand: Seco Tools
• Manufacturer Part Number: 02956309

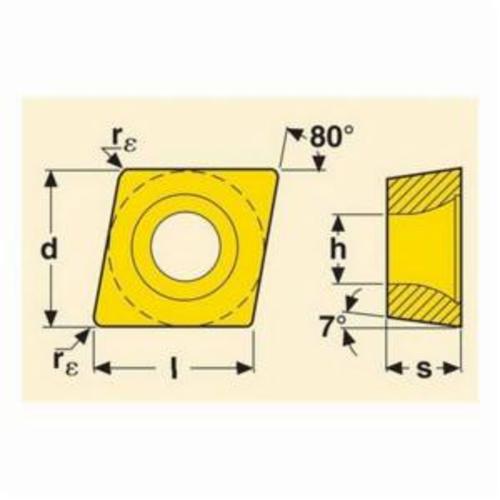

Technical Specifications

• ANSI Code: CCMT32.52-MF2 TP2501
• Chipbreaker: MF2
• Corner Radius: 0.8 mm
• Finish: CVD-TiCN+Al2O3 Coated
• Hole Diameter: 4.5 mm
• ISO Code: CCMT09T308-MF2 TP2501
• Included Angle: 80 degrees
• Inscribed Circle: 9.5 mm
• Maximum Depth of Cut: 3.5 mm
• Relief Angle: 7 degrees
• Thickness: 3.97 mm
• Insert Size: 09T308
• Shape: Diamond
• Seat Size: 09
• Rake: Negative/Positive
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
