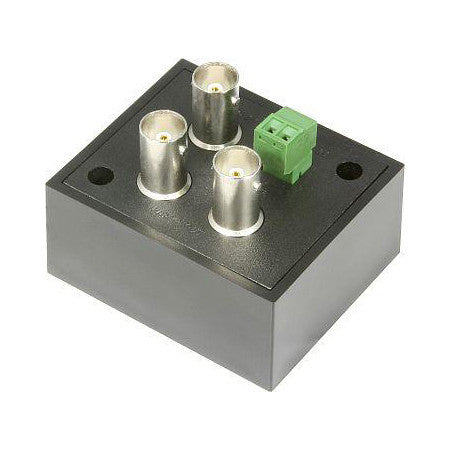

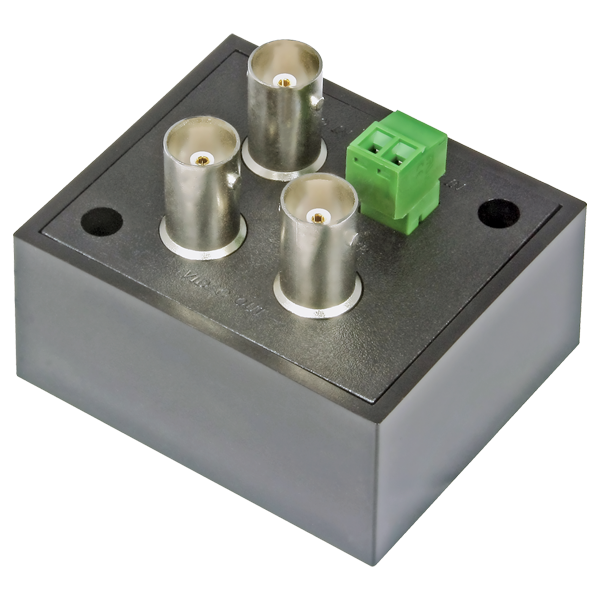

Seco-Larm VA-1102B-WYQ 4-in-1 HD Video Distributor 2-Outputs

Product Description

The Seco-Larm VA-1102B-WYQ 4-in-1 HD Video Distributor distributes a single video signal to multiple locations. Using noise-rejection circuitry, the distributor actively duplicates video signals to be sent to two separate locations. It supports TVI / CVI / AHD / Analog formats and includes a power adapter and DC jack connector.

• Distributes one video input to two video outputs
• TVI / CVI / AHD / Analog compatible
• Connect to a video camera, multiplexer, DVR, etc.

Product Highlights

Distributes video signal to multiple locations with noise-rejection circuitry, supporting various video formats.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: VA-1102B-WYQ

Technical Specifications

• Number of Inputs: 1x BNC
• Number of Outputs: 2x BNC
• Video Output Format: HD-TVI / CVI / AHD / Analog
• Video Input Level: 0.8~1.2Vp-p, 75Ω
• Video Output Level: 1Vp-p, 75Ω
• Image Gain: 6dB
• Video Bandwidth: 350MHz, -3dB
• Power Supply: 12VDC, 500mA
• Current Draw: 60mA
• Operating Humidity: 0~95% non-condensing
• Operating Temperature: 32°~131° F (0°~55° C)
• Mount Options: Stand-Alone
