Seco-Larm SS-040Q/W Vibration Detector

Product Description

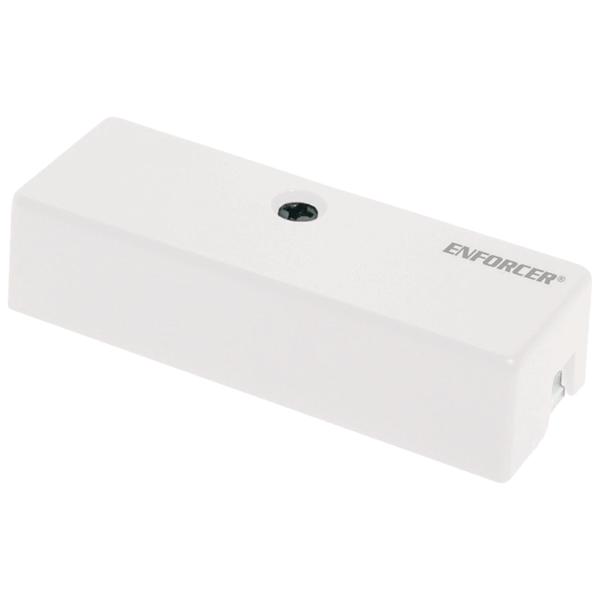

The Seco-Larm SS-040Q/W ENFORCER Mini Shock/Vibration Detector is designed for protection against forced entry through walls, ceilings, windows, safes, and cabinets. For use in closed-circuit alarm systems, it initiates an alarm when a vibration strikes the protected surface. A built-in tamper switch is independently wired for enhanced security.

• For use in closed-circuit alarm systems
• Pure silver contacts with gold plating ensure reliable and long-term operation
• Ideal for protecting glass windows, showcases, solid walls, ceilings, safes, cabinets, motorcycles, skylights, etc.

Product Highlights

Detects vibration/shock on surfaces, activating alarms. Features adjustable contact pressure for different surfaces and a tamper switch for enhanced security.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SS-040Q/W

Technical Specifications

• Circuit type: N.C., Momentarily open when activated
• Current rating: 1A@50VDC
• Contact: Silver with gold plating
• Contact pressure: Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
• Contact break time: Approx. 45ms max. (at 6-gram pressure)
• Estimated life: Over 100,000 cycles
• Housing: ABS resin
• Operating humidity: 5~90%, non-condensing
• Operating temperature: -40°~167° F (-40°~75° C)
• Manufacturer: Seco-Larm
• Brand: SECO-LARM
• Type: Hardwired
• Scene: Indoor
