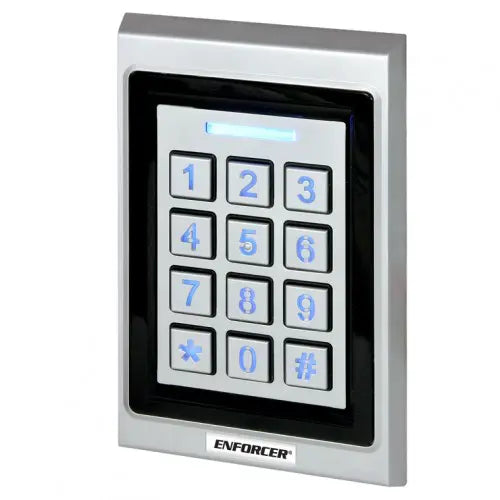

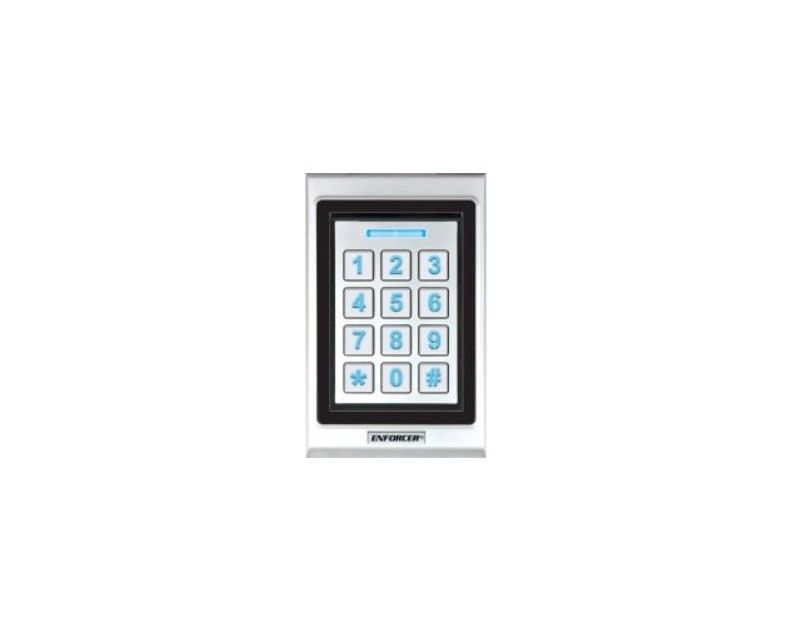

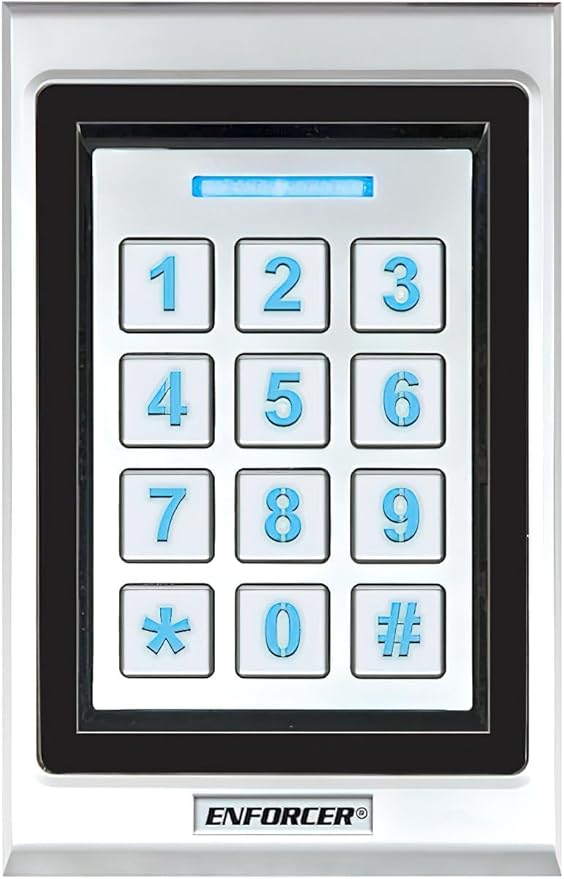

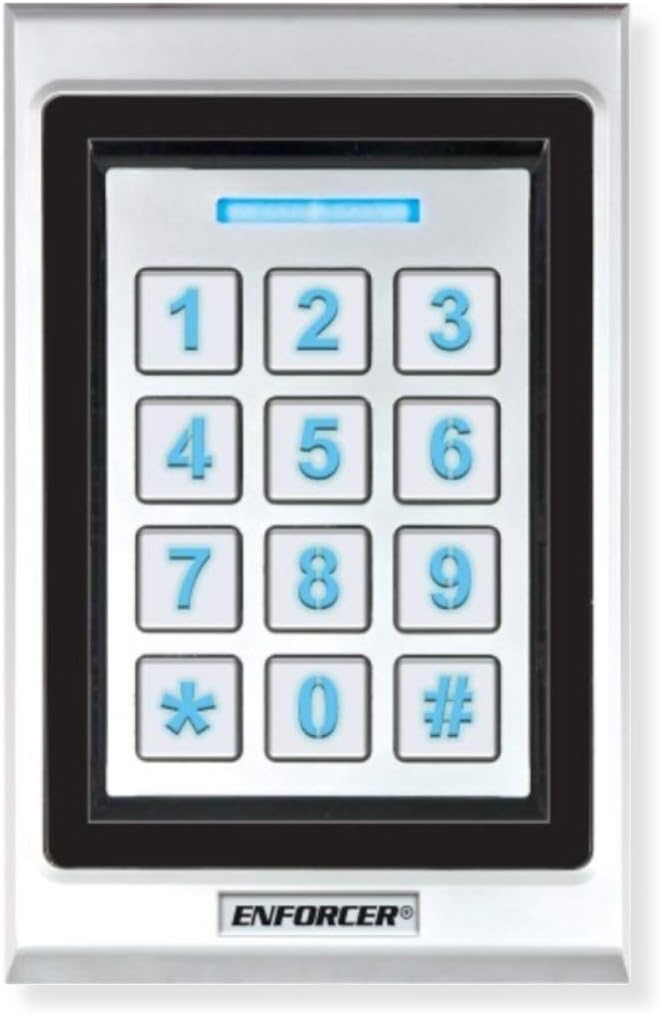

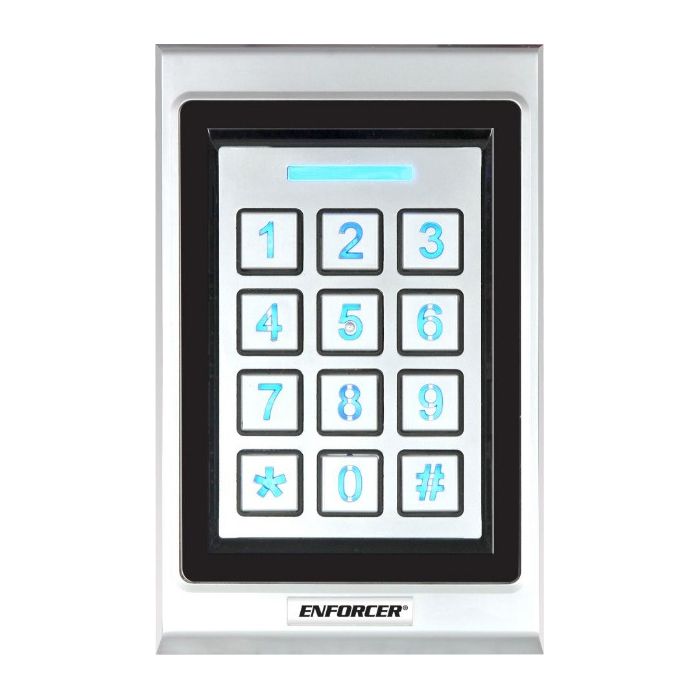

Seco-Larm SK-B141-PQ Bluetooth Access Controller, Single-Gang Keypad with Prox; App-Based Programming; Secure, Integrated Wireless Technology; 1000 Users; IP65 Weather Resistant

Product Description

The Seco-Larm SK-B141-PQ is a Bluetooth Access Controller, Single-Gang Keypad with Prox, featuring app-based programming and secure, integrated wireless technology. It supports 1000 users and is IP65 weather resistant. The controller allows streamlined, fully app-based setup using integrated Bluetooth wireless technology, providing convenience and security to both users and administrators.

• App-Based Programming
• Secure, Integrated Wireless Technology
• IP65 Weather Resistant

Product Highlights

This Bluetooth access controller features app-based programming, secure wireless technology and weather resistance.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-B141-PQ

Technical Specifications

• Voltage: 25 Volts
• Power Source: Dc
• Included Components: Keypad
• Connectivity Technology: Wireless
• Operating voltage: 9~25VDC
• Current draw: Standby: 55mA@12VDC, 30mA@24VDC Active (max.): 100mA@12VDC, 55mA@24VDC
• Outputs: Form C: 2.0A@30VDC Tamper alarm: 100mA@30VDC (solid state N.C.)
• Egress input: N.O. Ground
• Door sensor input: N.C. Ground
• Proximity reader: EM 125kHz
• IP Rating: IP65 Weather-resistant
• Enclosure material: Zinc alloy
• Operating humidity: 0-95%, non-condensing
• Operating temperature: -4°~122° F (-20°~50° C)
• Access modes: App / keypad / proximity card
• Bluetooth radio: Bluetooth Low Energy (BLE) 4.2
• Users: 1,000 users / 1 administrator
• Current draw (max.): 62mA@12VDC, 35mA@24VDC
• Outputs - Relay: Solid state, form C, 2.5A@30VDC
• Output - Tamper: 50mA@30VDC
• Installation Type: Wireless
• Unit Count: 1.0 Count
• Smart Home Compatibility: Smart Home Compatible
