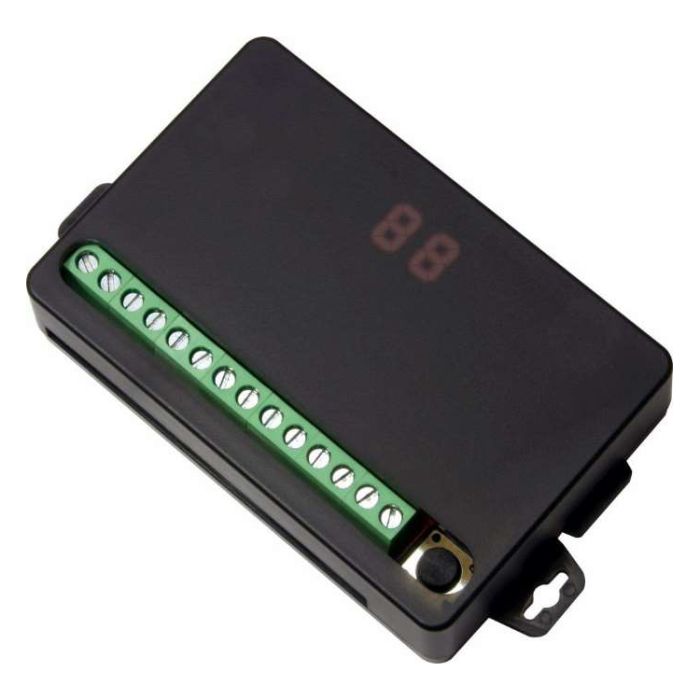

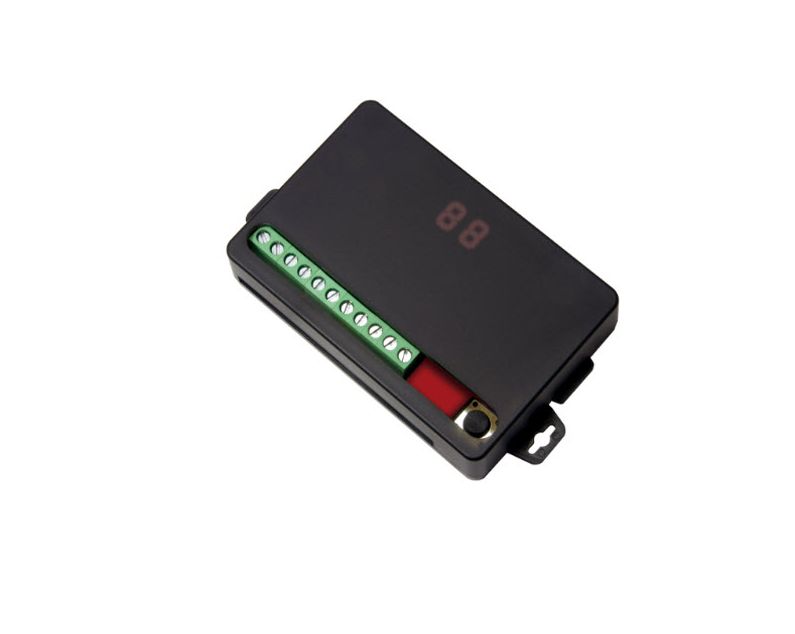

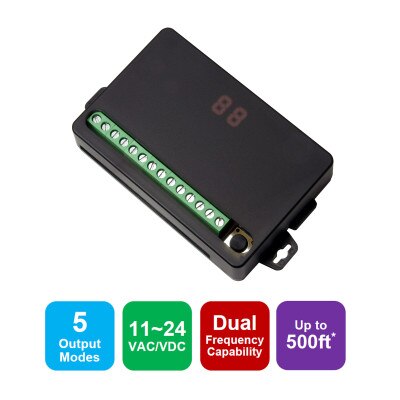

Seco-Larm SK-910RD3 3-Channel RF Receiver

Product Description

The Seco-Larm SK-910RD3 ENFORCER 3-Channel RF receiver meets the demand for multi-channel receivers with independently controlled output modes. It can remotely control devices like garage doors, lights, and motorized gates. The receiver operates at 315MHz and can operate at 433.92MHz with an optional Extended Range Antenna (SK-93ERSD).

• Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
• Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
• Up to 60 transmitter button codes can be learned per channel

Product Highlights

The receiver features an alphanumeric display, pushbutton programming, and compatibility with all ENFORCER transmitters of the same frequency.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-910RD3

Technical Specifications

• Operating frequency: 315MHz
• Memory capacity: 60 per channel
• Operating voltage: 10~24 VAC/VDC
• Operating current Standby: 16mA@12VDC, 12mA@24VDC
• Operating current Active: 60mA@12VDC, 50mA@24VDC (both per channel)
• Relay output Type: Independent, sequence, access control
• Relay output Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
• Relay contacts Number: 3
• Relay contacts Rating: Form C 10A@14VDC
• Connectors: Screw terminals, +, -, with NO/NC/COM per relay
• Digital display: 2-digit, 7-segment LED
• Operating humidity: 5~95%, non-condensing
• Operating temperature: 32°~167° F (0°~75° C)
• Certifications: IC, FCC
