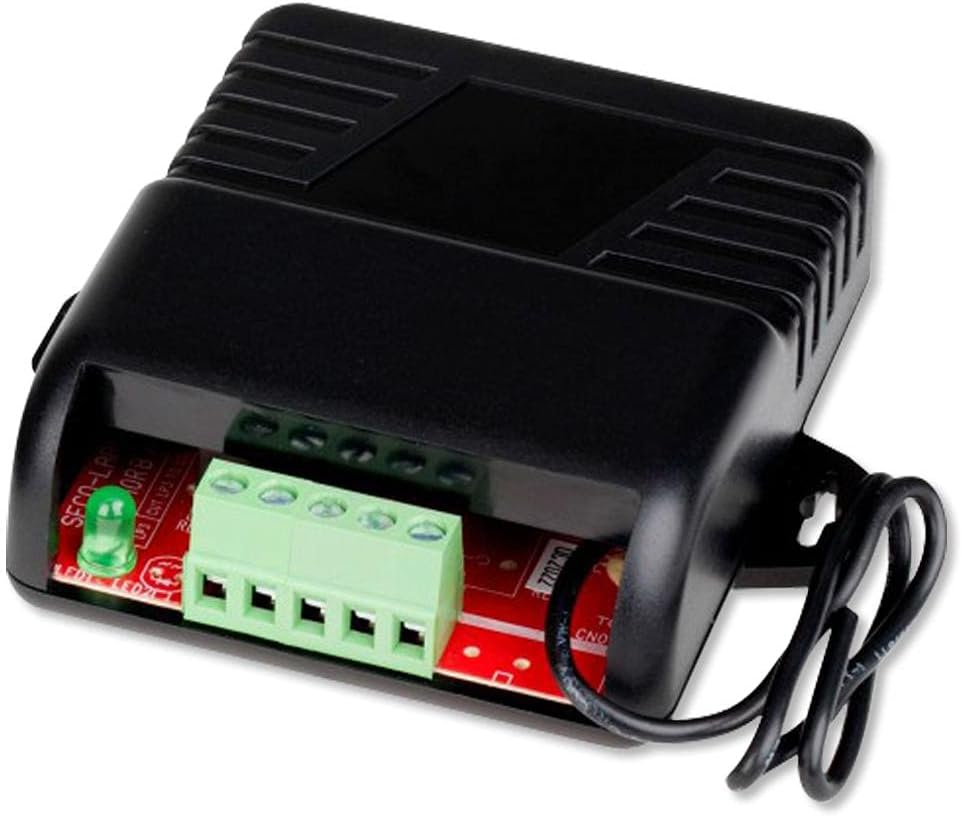

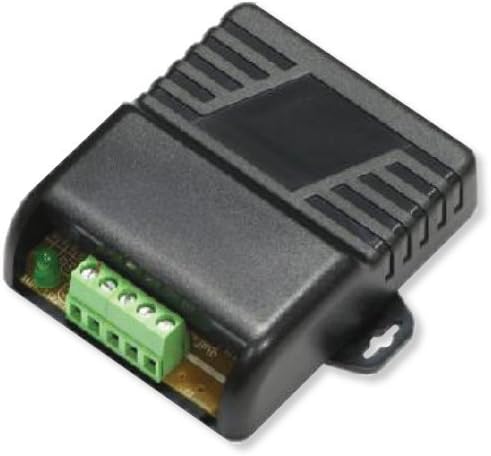

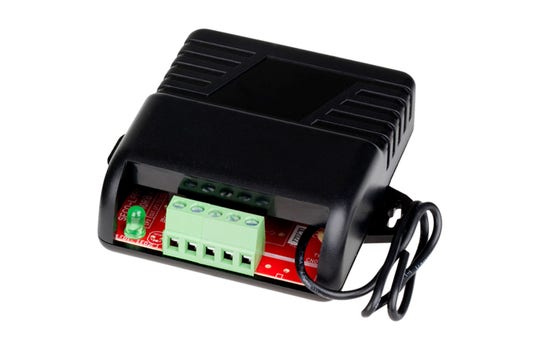

Seco-Larm SK-910RBQ Wireless Single-Channel RF Receiver 11~24 VAC/VDC 315MHz

Product Description

The Seco-Larm SK-910RBQ is a wireless single-channel RF receiver operating at 315MHz and supporting 11~24 VAC/VDC. It features a relay output and is compatible with all ENFORCER 315MHz transmitters, offering a range of up to 500' (150m). The receiver provides five programmable relay output modes for versatile applications.

• Wireless Single-Channel RF Receiver
• Compatible with All ENFORCER 315MHz Transmitters
• Up to 500' (150m) Range

Product Highlights

Ideal for remotely controlling garage doors, gates, house lights, and alarm panels. Features LED indication and pushbutton programming.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-910RBQ

Technical Specifications

• Brand: Seco-Larm
• MPN: SK-910RBQ
• Frequency: 315MHz
• Voltage: 11~24 VAC/VDC
• Range: Up to 500' (150m)
• Output: Relay Output
• Compatibility: Compatible with All ENFORCER 315MHz Transmitters
• Item model number: SK-910RBQ
• Operating voltage: 11~24 VAC/VDC
• Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
• Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
• Extended Range Antenna Compatible: Yes (SK-91ERSD)
• Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
