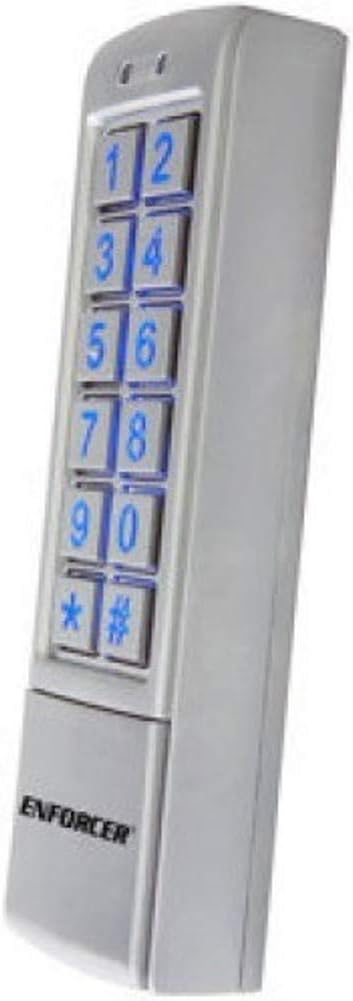

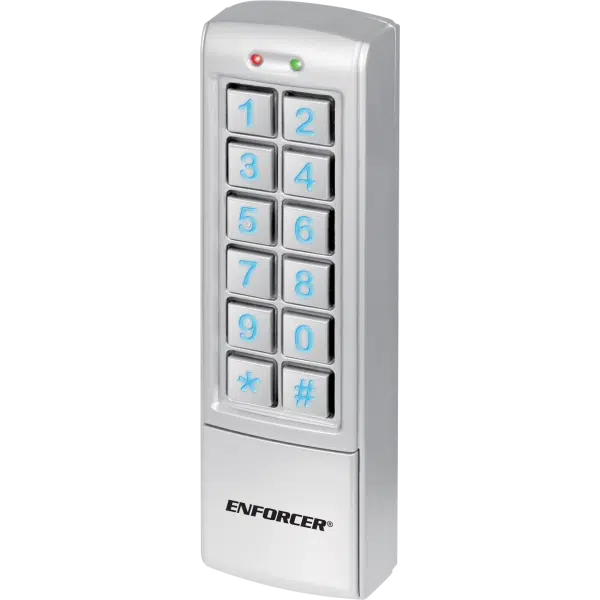

Seco-Larm SK-2323-SPQ Mullion-Style Weatherproof Digital Access Keypad

Product Description

The Seco-Larm SK-2323-SPQ is a mullion-style weatherproof digital access keypad. It supports 12~24 VAC/VDC operation and accommodates 1,010 users, divided into 1,000 for output #1 and 10 for output #2. The keypad features 2 Form C relays, each rated at 1 Amp @ 30VDC, and a built-in proximity card reader for enhanced access control.

• Mullion-Style design
• Weatherproof with an IP65 rating
• Supports 1,010 users with 2 Form C relays

Product Highlights

This digital access keypad provides secure access control with a built-in proximity card reader, ideal for demanding environments.

Product Information

Standard Information

• Brand: SECO-LARM
• Manufacturer Part Number: SK-2323-SPQ

Technical Specifications

• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw – Standby: 64mA@12VDC
• Current Draw- Active: 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• IP Rating: Weatherproof IP65
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Proximity Reader Frequency: 125kHz
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Proximity Reader Sensing Distance: 1-15/16" (50 mm)
• Operating Temperature: -4°~122° F (-20°~50° C)
• Dimensions: 6" x 1-3/4" x 15/16" (152x44x24 mm)
• Format: Wiegand
• Product Range: SK Series
• Keypad Array: 2 x 6
• Keypad Output: Matrix
• Housing Material: Aluminum
• Contact Current Max: 1A
• Contact Voltage DC Nom: 30V
• No. of Keys: 12
