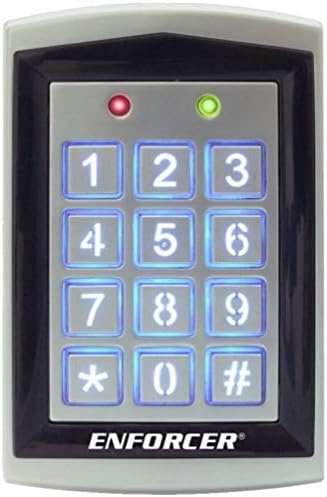

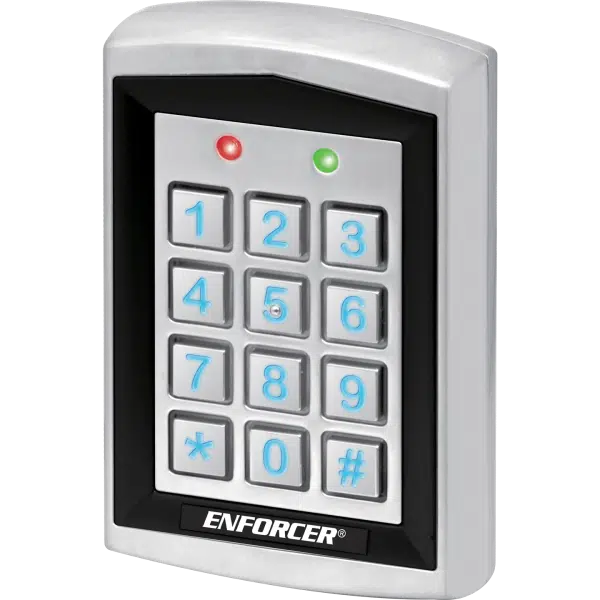

Seco-Larm SK-1323-SPQ Stand-Alone Weatherproof Keypad w/ Prox Reader

Product Description

The Seco-Larm SK-1323-SPQ is a stand-alone weatherproof keypad with prox reader. Designed for demanding commercial environments, it provides secure and flexible access control. It features intuitive programming, multi-user support, and seamless integration. The unit supports up to 1,010 users and operates on 12~24 VAC/VDC.

• Stand-alone and weatherproof design
• Features a built-in proximity card reader
• Circuitry is fully sealed with epoxy in a rugged aluminum housing

Product Highlights

This weatherproof keypad with prox reader is designed for access control in commercial environments. It supports multi-users and features easy programming.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-1323-SPQ

Technical Specifications

• Batteries Required?: No
• Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw – Standby: 64mA@12VDC
• Current Draw- Active: 92-120 mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Proximity Reader Frequency: 125kHz
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Proximity Reader Sensing Distance: 1-15/16" (50mm)
• Operating Temperature: -4°~122° F (-20°~50° C)
• IP Rating: Weatherproof IP65
• Special Feature: Weatherproof
• Compatible Phone Models: No Compatible Phone Models. Used with systems supporting smartphone access via NFC-enabled key fobs or cards programmed for 125kHz reader.
• Recommended Uses For Product: IP65 weatherproof rating
• Shape: Flat
• Frequency: 125 KHz
• AC Adapter Current: 1 Amps
• Unit Count: 1.0 Count
• Model Name: SK-1323-SPQ
• Indoor/Outdoor Usage: Outdoor
• Number of Items: 1
• Customer Package Type: Standard Packaging
• Maximum Voltage: 24 Volts (DC)
• Outer Material: Aluminum
