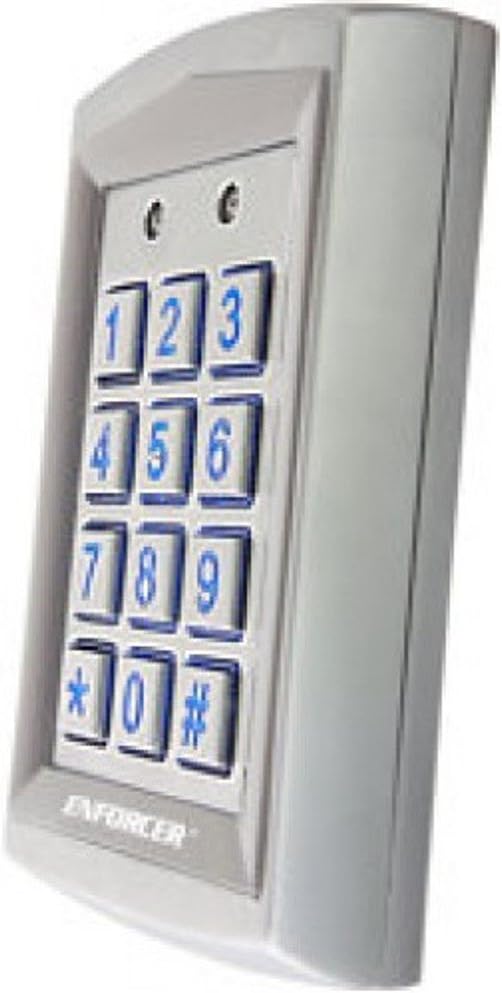

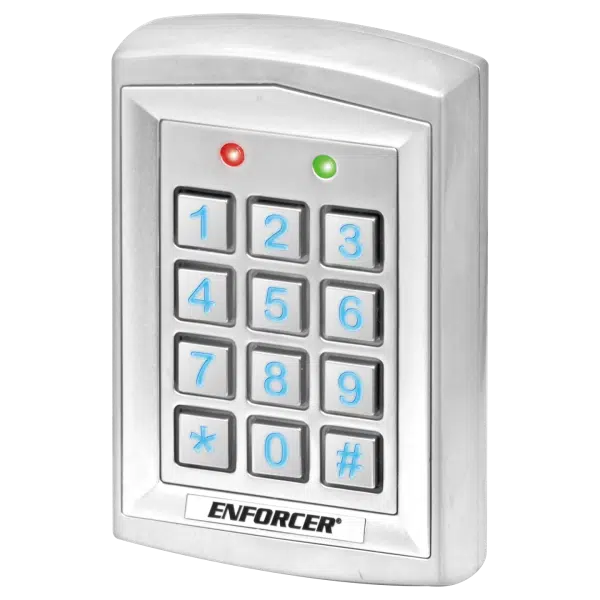

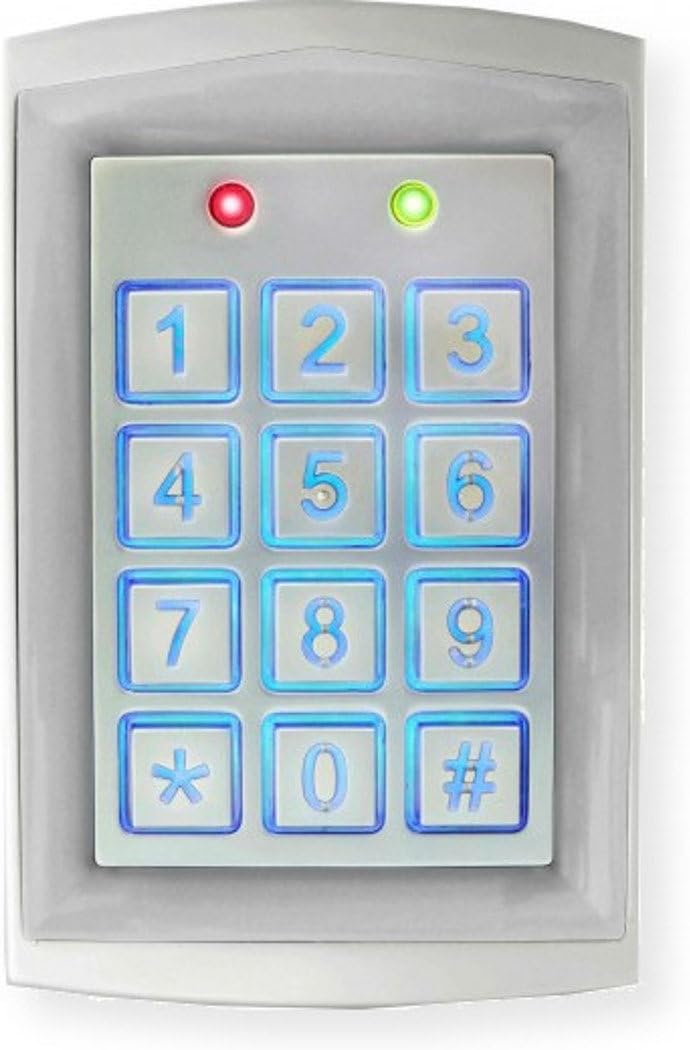

Seco-Larm SK-1323-SDQ Sealed Housing Weatherproof Stand-Alone Digital Access Keypad 1010 Users

Product Description

The Seco-Larm SK-1323-SDQ sealed housing weatherproof stand-alone digital access keypad is designed with up to 1010 users, a proximity reader, and backlit keys for nighttime use. Constructed with rugged aluminum, this keypad provides secure and flexible access control. Ideal for businesses needing reliable entry management without external hardware.

• Sealed Housing and Weatherproof
• Up to 1010 Users
• Backlit Keys for Nighttime Use

Product Highlights

This digital access keypad is designed for demanding commercial environments, offering secure access control in a compact, weatherproof design.

Product Information

Standard Information

• Brand: SECO-LARM
• Manufacturer Part Number: SK-1323-SDQ

Technical Specifications

• Voltage: 12 Volts
• Power Source: Corded Electric
• Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw – Standby: 64mA@12VDC
• Current Draw- Active: 92~120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• IP Rating: Weatherproof IP65
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Operating Temperature: -4°~122° F (-20°~50° C)
• Connectivity Technology: Wired
• Installation Type: professional hard-wired, wireless DIY
• Alert Type: Entry
• Included Components: Basic installation components (mounting hardware, etc.)
• Unit Count: 1.0 Count
• Sensor Technology: Photoelectric Sensor
• Assembly Instructions Description: Included
• Manufacturer: Seco-Larm
• Item model number: SK-1323-SDQ
• Batteries required: No
• Warranty Description: 1 Year
• Control Method: Touch
