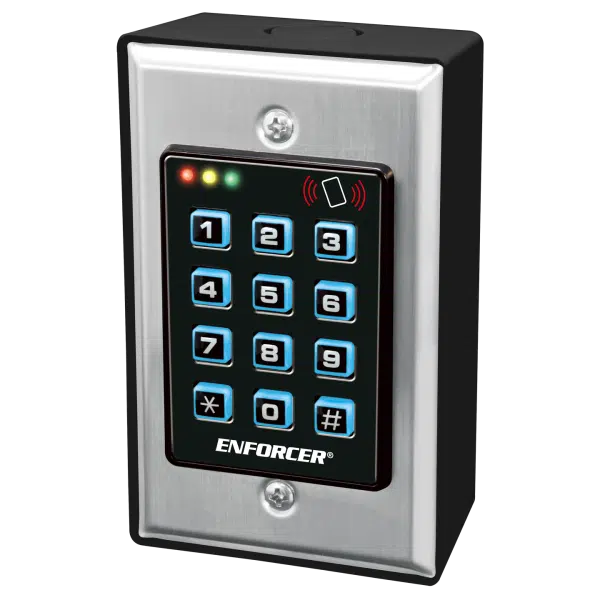

Seco-Larm SK-1131-SPQ Indoor Illuminated Access Control Keypad with Proximity Reader

Product Description

The Seco-Larm SK-1131-SPQ is an indoor illuminated access control keypad with a built-in proximity card reader. It supports 12~24 VAC/VDC auto-adjusting operation and up to 1,000 user codes/cards for output 1, 100 for output 2, and 100 for output 3. It also features visitor and duress codes, EEPROM memory, and tamper output.

• Built-in proximity card reader
• 12~24 VAC/VDC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3

Product Highlights

This access control keypad is suitable for indoor use in offices, homes, or warehouses, providing secure entry with card or code access.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-1131-SPQ

Technical Specifications

• Operating Voltage: 12~24 VAC/VDC
• Current Draw: Standby: 66mA@12VDC Keypress: 93mA@12VDC Output 1 active: 99mA@12VDC Output 1 & 2 active: 126mA@12VDC Output 1, 2 & 3 active: 127mA@12VDC Total max. current draw: 160mA@12VDC
• Outputs: #1 Form C: 1A@30VDC #2 Form C: 1A@30VDC #3 Transistor ground: 100mA@24VDC K or A: 100mA@24VDC Duress: 100mA@24VDC Interlock: 100ma@24VDC Tamper: 50mA@24VDC
• Inputs: Egress: N.O. Ground Door sensor: N.C. Ground Door inhibit: N.O. Ground
• Proximity Reader Frequency: 125kHz (EM125)
• Proximity Reader Sensing Distance: 1-1/2” (38mm)
• Operating Humidity: 5~95% Non-condensing
• Operating Temperature: -4°~158° F (-20°~70° C)
• Key Product Features: Built-in proximity reader: 125kHz (EM125)
• Relay output inhibit control: Built-in tamper (N.C.) circuit.
• Manufacturer Part #: SK-1131-SPQ
• Brand: SECO-LARM
• MPN: SK1131SPQ
• Power Source: Corded Electric
• Number of Channels: 1
• Voltage: 12~24 VAC/VDC
• Features: Bracket, Flashing LED, Outdoor/Weatherproof
• Authentication: SECO-LARM
