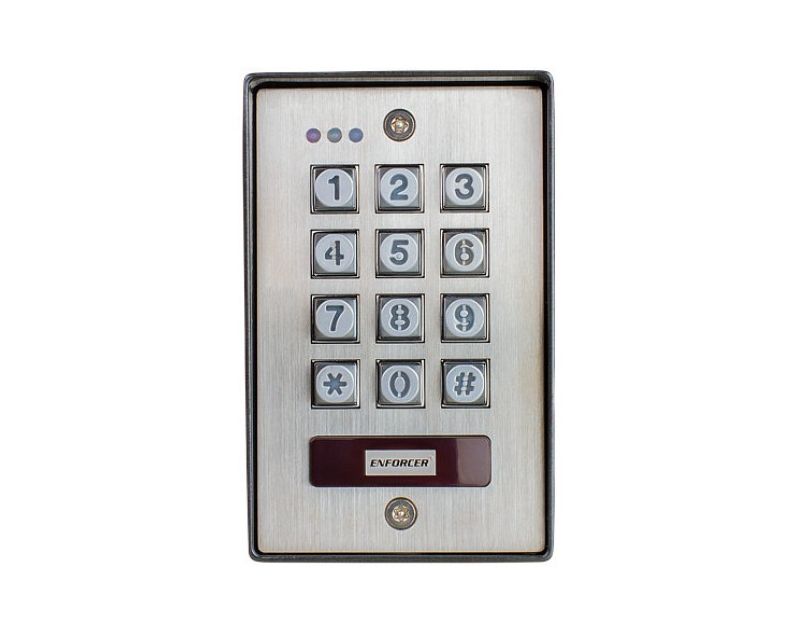

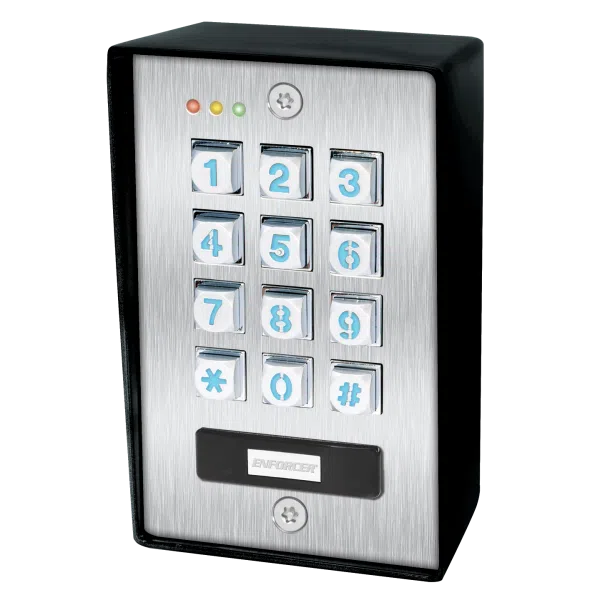

Seco-Larm SK-1123-SPQ vandal resistant outdoor access control keypad with proximity reader

Product Description

The Seco-Larm SK-1123-SPQ is a vandal-resistant outdoor digital access keypad with a built-in proximity reader. It supports 12~24 VDC/VAC auto-adjusting operation and up to 1,000 user codes for output 1 and 100 for output 2. It also features visitor and duress codes, along with programmable outputs and tamper protection.

• Supports up to 1,000 user codes for output 1 and 100 for output 2
• Features visitor and duress codes for enhanced security
• Weatherproof IP66 rating for outdoor use

Product Highlights

This vandal-resistant keypad offers versatile access control with proximity reader, multiple user codes, and durable construction for outdoor applications.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-1123-SPQ

Technical Specifications

• Type: Vandal-Resistant Outdoor Digital Access Keypad with Built-in Prox Reader
• Operating Voltage: 12~24 VDC/VAC
• Current Draw – Standby: 66mA@12VDC
• Current Draw – Keypress: 93mA@12VDC
• Current Draw- 1 Relay Active: 99mA@12VDC
• Current Draw – Total Max: 160mA@12VDC
• Current Draw- 1 & 2 Relays Active: 126mA@12VDC
• Relay Output- #1: 1A@30VDC, Form C
• Relay Output- #2: 1A@30VDC, Form C
• Relay Output- Key Active: 100mA@24VDC
• Relay Output- Duress: 100mA@24VDC
• Relay Output- Interlock: 100mA@24VDC
• Relay Output- Tamper: 50mA@24VDC
• Egress Inputs: N.O. Ground
• Door Inhibit Input: N.O. Ground
• Door Sensor Input: N.C. Ground
• Proximity Reader Frequency: 125kHz (EM125)
• Proximity Reader Sensing Distance: 1-1/2” (38mm)
• Operating Temperature: -4°~158° F (-20°~70° C)
• Operating Humidity: 5~95% Non-condensing
• IP Rating: Weatherproof IP66
