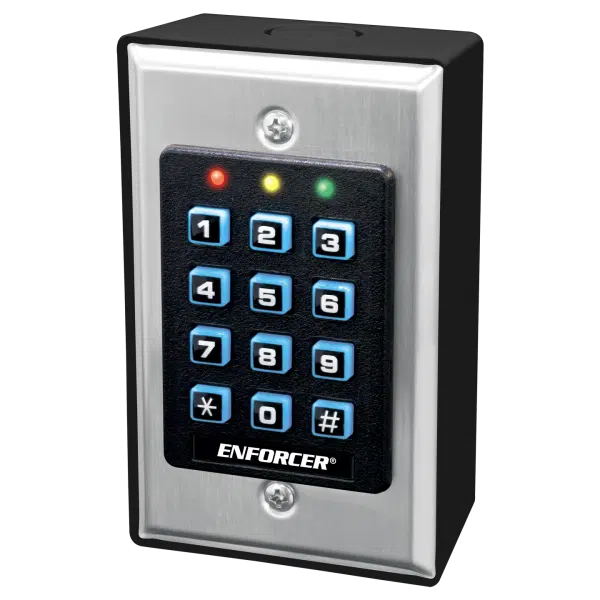

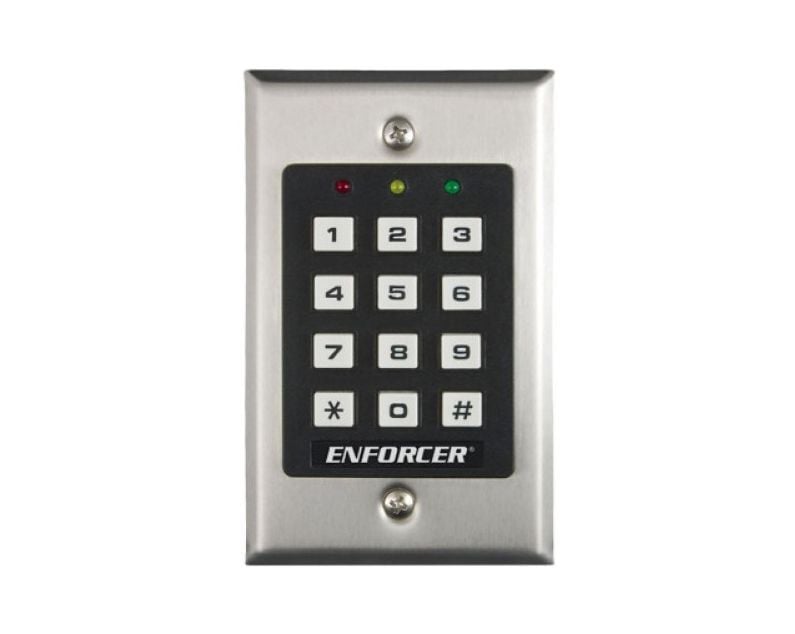

The Seco-Larm SK-1011-SDQ ENFORCER is a single-output, indoor access control keypad supporting up to 1,000 users and 50 temporary visitors. It can be surface mounted with the included back box or flush mounted in a standard single-gang back box. The keypad features a tamper alarm and a backlit keypad for use in dark areas.
Supports up to 1,000 possible user codes.
Features up to 50 temporary visitor codes, programmable for one-time or limited-time use.
Includes an egress input that lets users exit the premises without keying in the code.
Product Highlights
This access control keypad is ideal for indoor use, providing secure entry with user codes and temporary visitor options. It's easy to install and program directly from the keypad.
Product Information
Standard Information
Brand: Seco-Larm
Manufacturer Part Number: SK-1011-SDQ
Technical Specifications
Operating Voltage
12~24 VDC/VAC
Current Draw Standby
15mA
Current Draw Keypress
30mA
Current Draw Output 1 active
55mA
Current Draw Total (max.)
90mA
Outputs
Output 1, Form C: 1A@30VDC
Tamper:50mA@24VDC
Egress Inputs
N.O. ground
Operating Humidity
5~95% Non-condensing
Operating Temperature
-4°~158° F (-20°~70° C)
Output
Form C relay, 1A@30VDC max.
Up to 1,000 possible user codes
4-8 digits
Output can be programmed to activate for up to
99,999 seconds (nearly 28 hours)
Keypad
Always-on backlit
Up to 50 possible temporary visitor codes
01~50
Temporary visitor codes use
onetime or limited-time use (1~99 hours)
Faceplate
Durable and attractive stainless-steel
Tamper output
N.C. Dry contact, 50mA@24VDC max.
Mounts to
a standard single-gang back box (surface-mount back box included)
