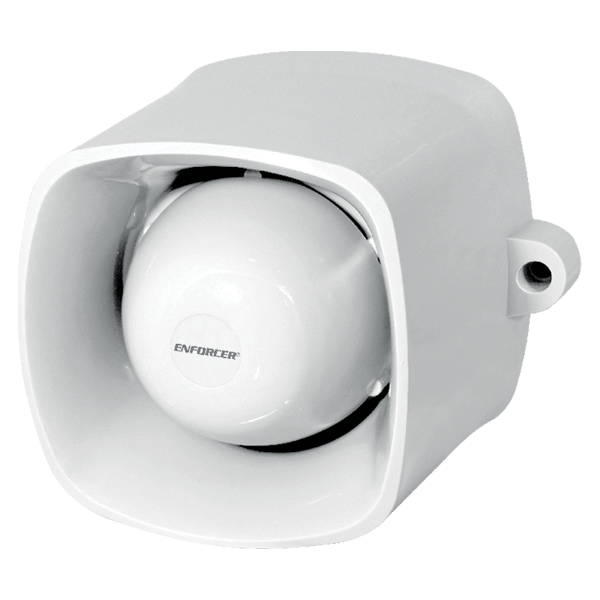

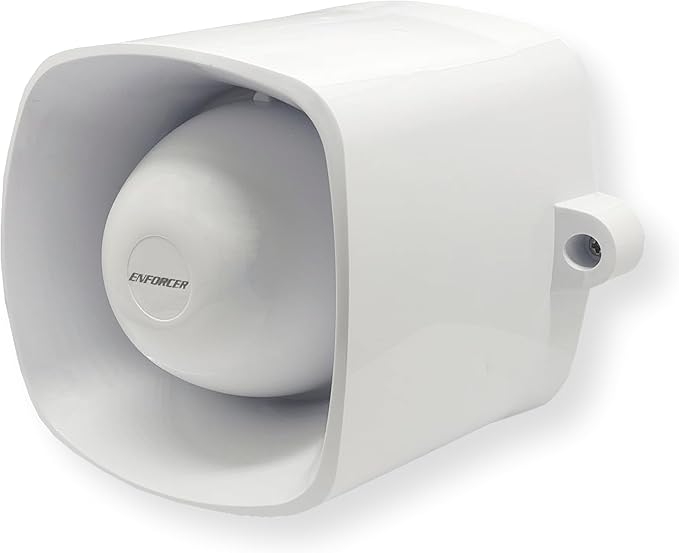

Seco-Larm SH-816S-BQ Self-Contained Siren

Product Description

The Seco-Larm SH-816S-BQ ENFORCER siren/strobe is a multi-purpose device that functions as a siren and speaker with an optional strobe. It can serve as a regular siren and has an audio input for audio playback or broadcasting messages. It has a weatherproof IP65 rating for outdoor/indoor use.

• 9~15 VDC
• Low current draw
• 120dB Warble-tone siren
• 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
• Built-in tamper alarm output
• Weatherproof for outdoor/indoor use, IP65
• Easy installation
• Mount directly to wall or to most common back boxes

Product Highlights

The SH-816S-BQ siren features a 120dB warble-tone siren and a 25W speaker for broadcasting messages. It has a built-in tamper alarm output and is weatherproof for outdoor/indoor use.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SH-816S-BQ

Technical Specifications

• Type: Siren
• Operating Voltage: 9~15 VDC
• Current Draw (max.) – Siren: 680mA@12VDC
• Current Draw (max.) – Both: 870mA@12VDC
• Siren Volume: 120dB
• Speaker Rating: 25W Peak
• Tamper Output: 100mA@30 VAC/VDC
• IP Rating: Weatherproof IP65
• Operating Humidity: 0~95%
• Operating Temperature: -4°~131° F (-20°~55° C)
• Housing Material: White polycarbonate plastic
• Control Method: Touch
• Noise Level: 120 Decibels
• Mounting Type: Wall Mount
• Manufacturer: Seco-Larm
• Part Number: SH-816S-BQ
• Item model number: SH-816S-BQ
• Item Package Quantity: 1
• Included Components: 1 Self Contained Siren
• Batteries Included?: No
• Batteries Required?: No
• Credentials: CE, RoHS
• Voltage: 9-15 VDC
• Siren Output: 120dB Warble-tone
• Speaker Power: 25W
• Ingress Protection: IP65
• Siren Types: Sirens
