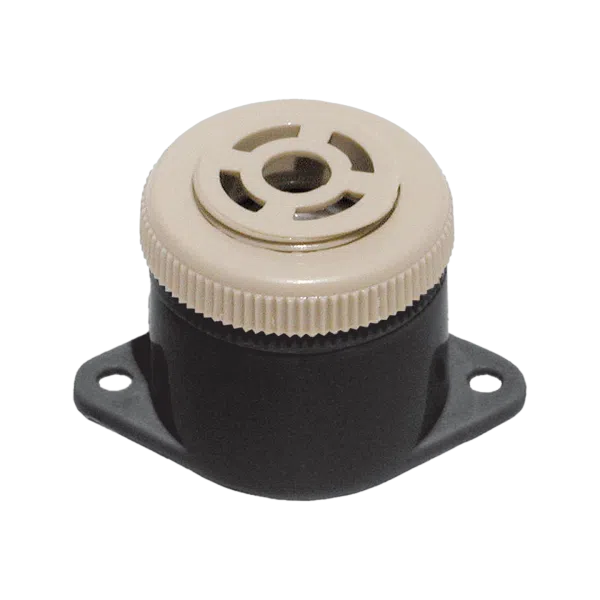

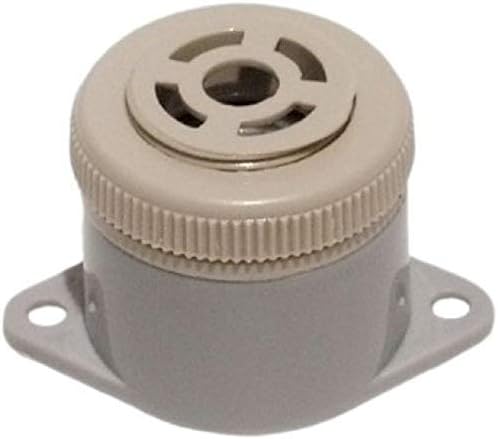

Seco-Larm SH-504Q Electronic Buzzer

Product Description

The Seco-Larm SH-504Q electronic buzzer operates on 5~15 VDC with a sound level of 91dB and a current draw of 35mA@12VDC. It features a surface mount and comes in a black/tan plastic case. Typical applications include door release buzzer systems. Its compact size measures approximately ø1"x1" (ø26×26 mm).

• 5~15 VDC
• 91dB
• Surface mount

Product Highlights

The SH-504Q buzzer is compact, simple to install, and uses 12VDC power for additional security measures for your current security alarm system.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SH-504Q

Technical Specifications

• Sound level: 91dB
• Frequency: 400Hz ±100Hz
• Operating voltage: 5~15 VDC
• Current draw: 35mA@12VDC
• Mounting Type: Wall Mount
• Power Source: DC Powered
• Voltage: 15 Volts
• UPC: 676544003090
• Manufacturer: SECO-LARM
• Item model number: SH-504Q
• Mounting: Surface mount or mount in 3/4" (19mm) hole of alarm panel or remote plate
• Current Drain: 35mA @ 12VDC
