Seco-Larm SD-R400-BQ Microwave RTE Sensor

Product Description

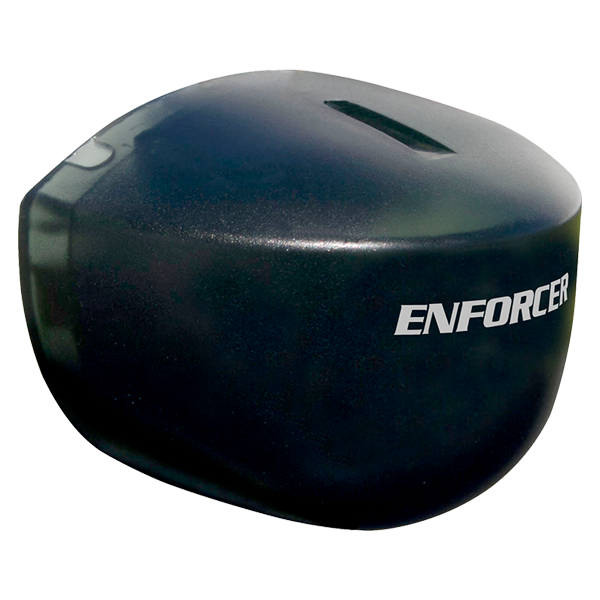

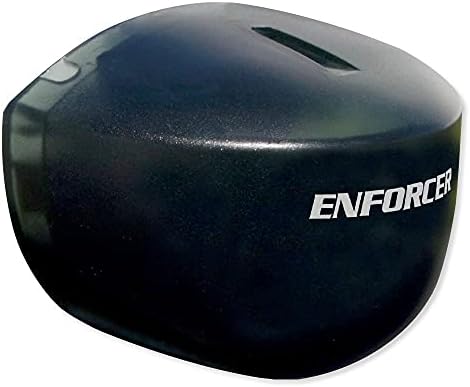

The Seco-Larm SD-R400-BQ ENFORCER Microwave RTE Sensor is a compact motion sensor featuring an adjustable output timer. It can connect to an access control keypad and trigger devices with an egress input. The sensor utilizes 24.150GHz Microwave Doppler technology with a 10ft adjustable sensing range. Designed for indoor use.

• Small size allows for a wide range of applications
• Universally compatible, install the sensor above doors for no-touch ingress/egress
• More consistent detection in large areas and over a wide range of temperatures

Product Highlights

Compact motion sensor with adjustable timer for access control and egress triggering. Features microwave Doppler technology and adjustable sensing range.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-R400-BQ

Technical Specifications

• Operating Voltage: 12~24 VDC
• Technology: 24.150GHz Microwave Doppler technology
• Sensing Range: 10ft (3m), adjustable
• Relay Output Time: Adjustable, 1~33 s
• Use: Indoor use only
• Current Draw Standby: 23mA@12VDC / 14mA@24VDC
• Current Draw Active: 39mA@12VDC / 21mA@24VDC
• Sensor Frequency: 24.150GHz
• Sensor Angle Vertical: 0°~90°
• Sensor Angle Horizontal: ±30°
• Detection Angle Front/Back: 20°~30°
• Detection Angle Left/Right: 60°~70°
• Min. Detection Speed: 5cm/s
• Output Relay: 2A@30VDC (0.5A@125VAC) Dry relay,NO/NC/COM
• Mounting Height: 6'~10' (1.8~3 m)
• Cable Length: 8' (2.5m)
• LED Indicator: Red on relay activation
• Case Material: Black ABS and polycarbonate
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
