Seco-Larm SD-H412 Electric Transfer Hinge 4-1/2 in x 4-1/2 in x 1/8 in

Product Description

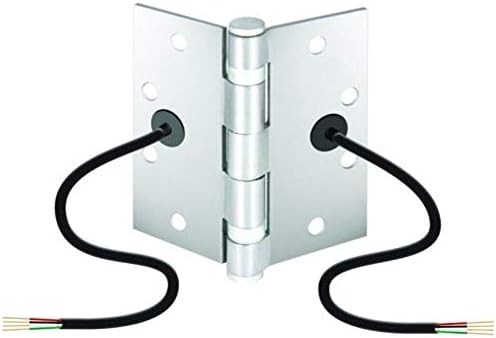

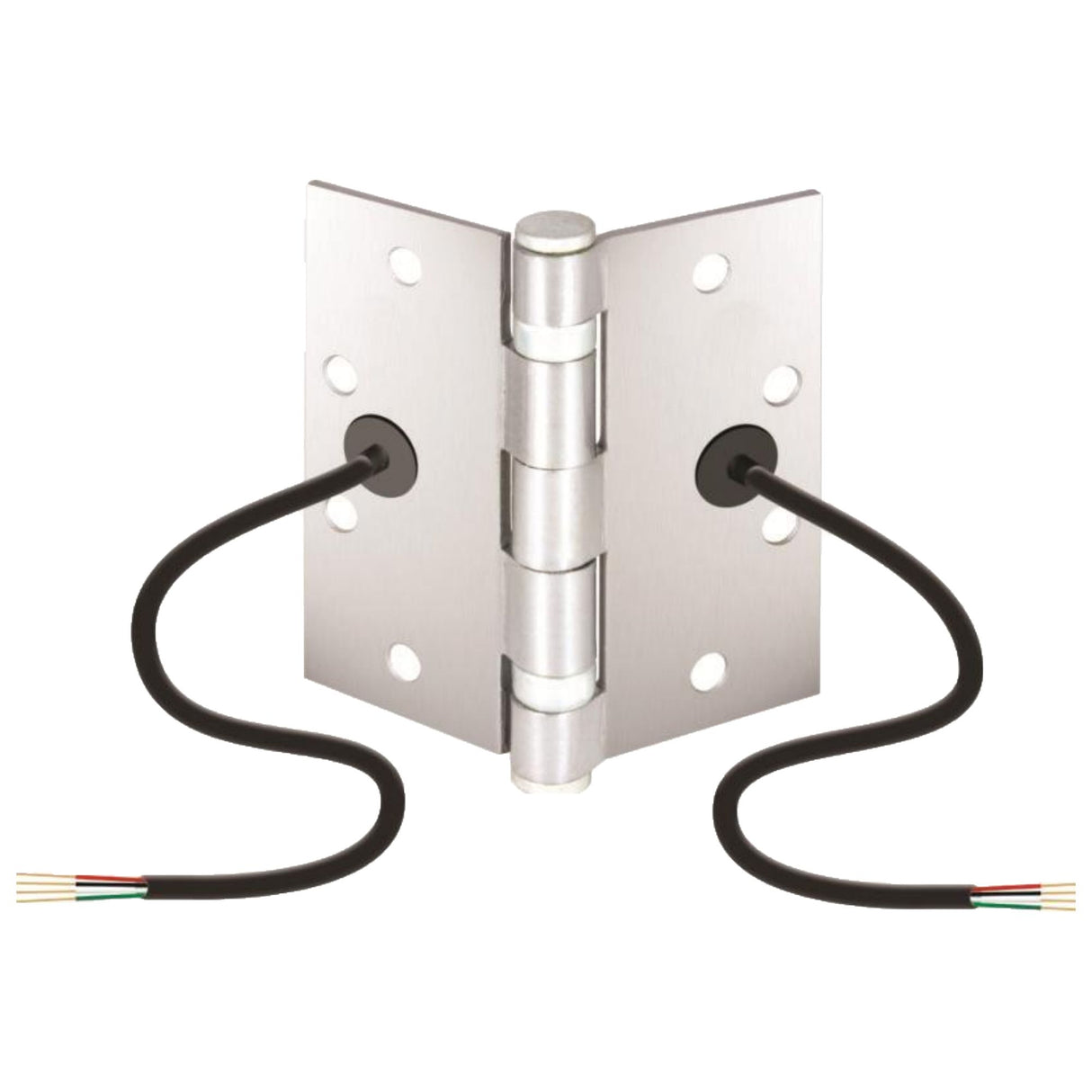

The Seco-Larm SD-H412 Electric Transfer Hinge provides a vandal-resistant method for protecting and concealing wires between a hollow door and door frame. It is suitable for low-voltage, low-current applications such as electric door strikes, locksets, and deadbolts or other monitoring or exit devices. The hinge replaces the center hinge and features a 5-knuckle design with 4x 28AWG wires.

• 12 or 24 VAC/VDC operation
• 4 Conductive wires – 4x 28AWG wires, 0.5A@24VAC/VDC
• Standard 5-knuckle hinge

Product Highlights

Vandal-resistant steel housing protects and hides the wires. Provides power and data transfer. Replaces one of the standard door hinges on a hollow door.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-H412

Technical Specifications

• Type: 5-knuckle, 4-wire transfer hinge with concealed wiring
• Operating Voltage: 12 to 24 VAC/VDC
• Operating Temperature: -4 to 185 F (-20 to 85 C)
• Current Rating: 0.5A @ 24VAC/VDC
• Wires: 4x 28AWG (red, black, white, green)
• Dimensions: 4-1/2 in x 4-1/2 in x 1/8 in
• Finish: US26D (652)
