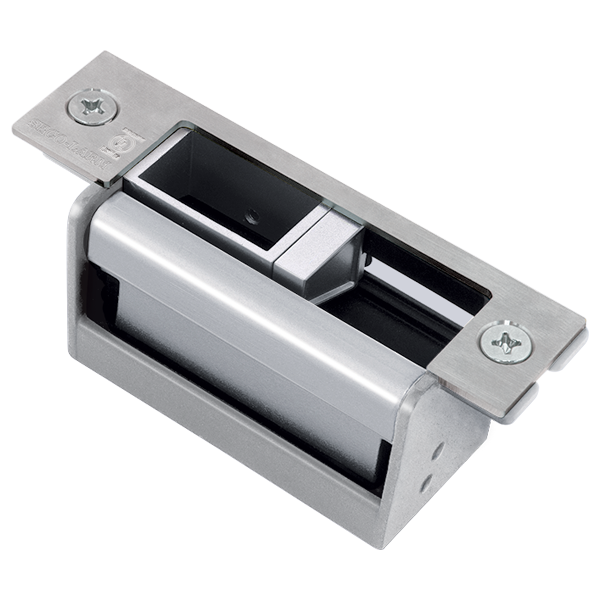

Seco-Larm SD-996C-NUVQ Electric Door Strike with Vertical Adjustment

Product Description

The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with cylindrical, mortise, and mortise exit devices. It can be configured for use in wood, aluminum, or metal doors. Various ANSI-sized faceplates are included to match the door lock type, and it's easily field-configurable for fail-safe or fail-secure applications.

• UL 294 and 1034 Listed
• 12/24 VDC Operation
• Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types

Product Highlights

Electric door strike supports 12/24 VDC operation and is field selectable for fail-safe or fail-secure configurations. Includes 5 faceplates and a trim plate.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-996C-NUVQ

Technical Specifications

• Operating Voltage: 12/24 VDC
• Current Draw: 300mA@12VDC, 150mA@24VDC
• Latch Throw: 1" (25mm) max with 1/8" (3mm) door gap
• Static Strength: 1,000 lbs. (454kg)
• Dynamic strength: 33 ft-lbs. (4.56 m-kgs)
• Operating Temperature: 14°F~113°F (-10°~45° C)
• Operating Humidity: 0~85%
• Voltage and Duty Continuous: 12/24 VDC
• Locking State: Selectable
• Frame: Aluminum/Metal/Wood Frame
• Pull Strength: 1000 lb.
