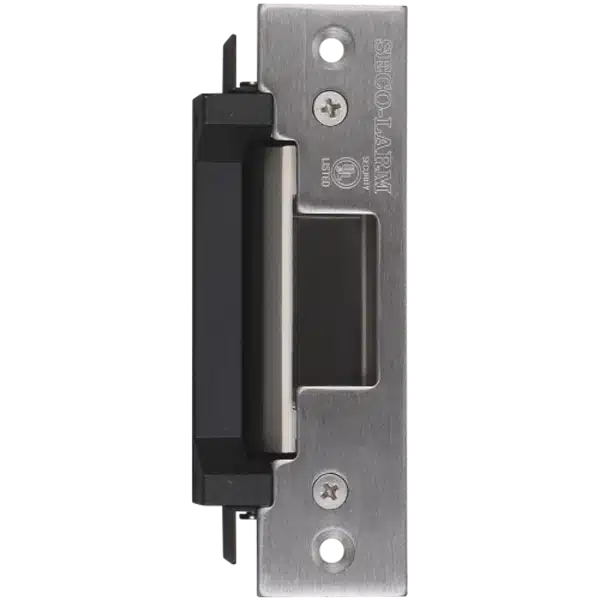

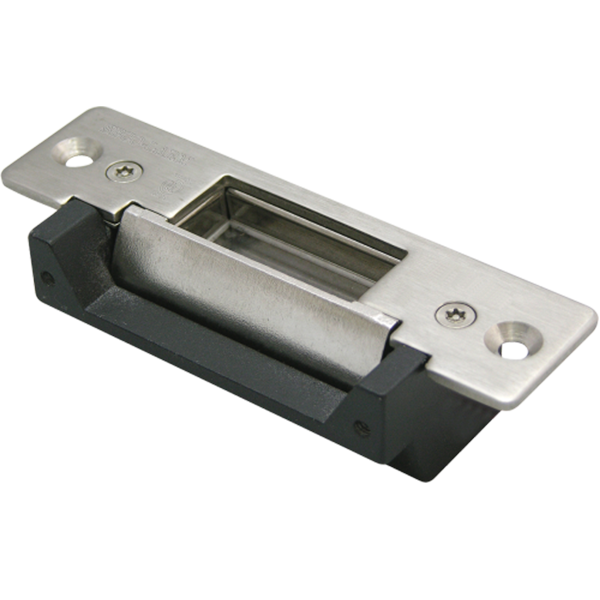

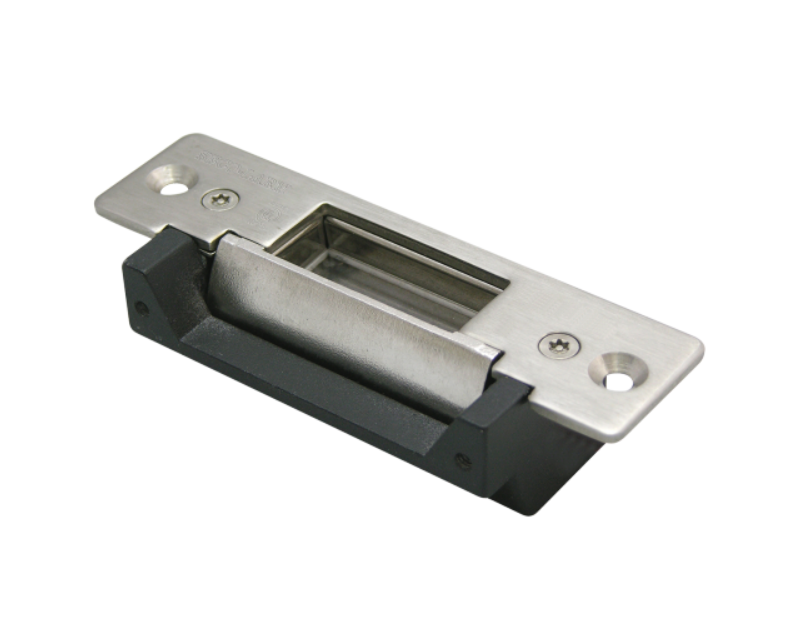

Seco-Larm SD-995C24 Electric Door Strike for Metal Doors, Fail-Secure or Fail-Safe, 24VDC

Product Description

The Seco-Larm SD-995C24 Electric Door Strike converts cylindrical lock sets into an electronic access-controlled locking system. It operates at 24VDC and is field-selectable for fail-safe or fail-secure operation. Designed for metal doors, it features a stainless steel keeper and a non-polarized connection. It is also compatible with optional digital keypads.

• UL 294 & UL 1034 Listed
• Field-selectable for fail safe or fail-secure operation
• Can be used with virtually any cylindrical door locking system

Product Highlights

Enhance security for metal doors with this electric door strike, offering easy integration and durable construction for access-controlled systems.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-995C24

Technical Specifications

• Operating Voltage: 24VDC
• Operation: Fail-secure or Fail-safe
• Current Draw: 150mA
• Static Strength: 1,000-lb
• Operating Temperature: 14°F~113°F (-10°~45° C)
• Dynamic strength: 50 ft-lbs (6.91 m-kgs)
• Jaw Strength: 2,000 lbs
• Installation Type: Shallow for metal doors
• Cycles Tested: 1 million
• Keypad Compatibility: Yes, with optional keypad
• Field Programmable: Yes, for fail-safe or fail-secure
• Reversibility: Yes, for right-hand or left-hand doors
• Material: Stainless-steel keeper
• Manufacturer Part No: SD-995C24
