SECO-LARM SD-995C Electric Door Strike for Metal Doors Fail-secure or Fail-safe 12VDC

Product Description

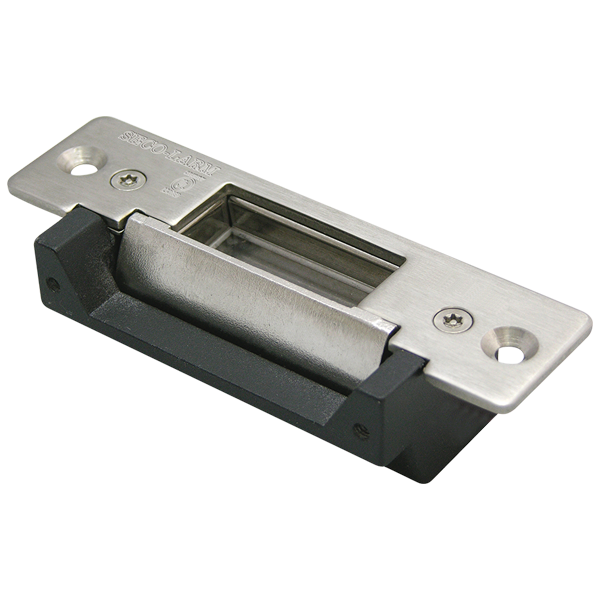

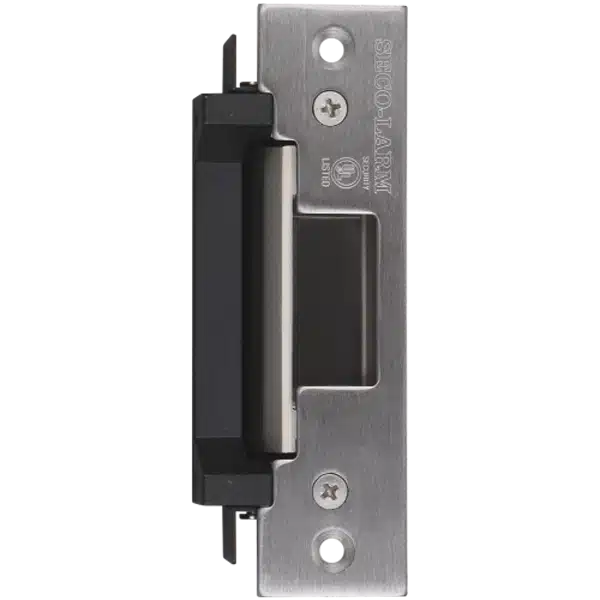

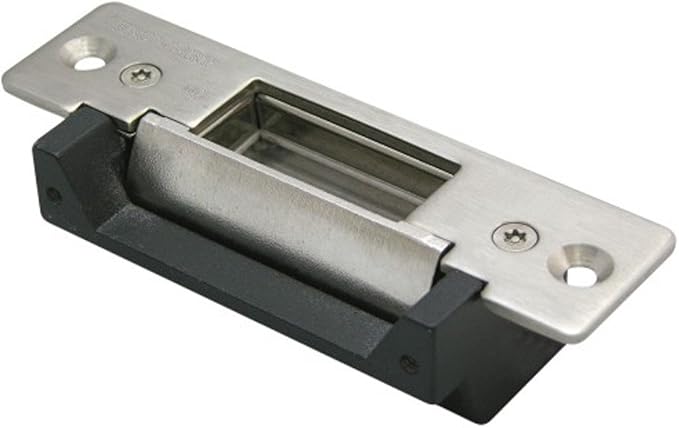

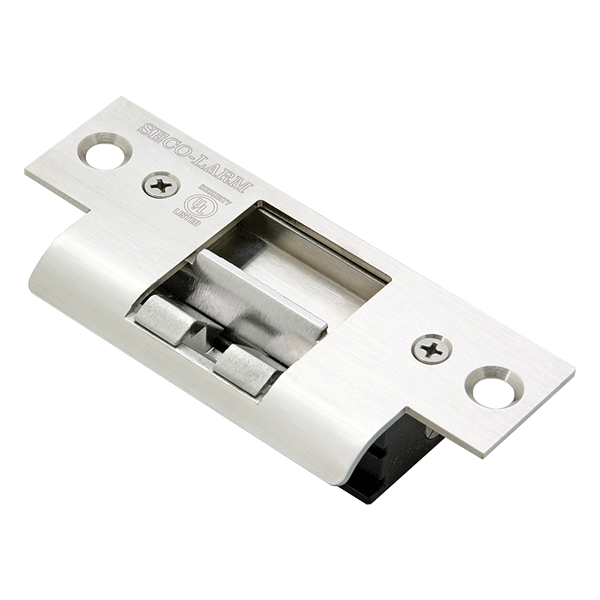

The SECO-LARM SD-995C Electric Door Strike is designed to convert cylindrical lock sets into an electronic access-controlled locking system. This product is compatible with metal doors and can be paired with an optional digital keypad for keyless security solutions.

• UL 294 & UL 1034 listed for safety
• Field-selectable operation between fail-safe or fail-secure
• Compatible with most cylindrical door locking systems

Product Highlights

This electric door strike provides reliable security and flexibility in electronic access control. It is suitable for various applications where controlled access is required.

Product Information

Standard Information

• Brand: SECO-LARM
• MPN: SD-995C

Technical Specifications

• Operating Voltage: 12VDC
• Operation: Fail-secure or Fail-safe
• Current Draw: 280mA
• Static Strength: 1,000 lbs. (454kg)
• Dynamic Strength: 50-ft-lbs. (6.91 m-kgs)
• Operating Temperature: 14°F~113°F (-10°C~45°C)
• Dimensions: 4-7/8 inches x 1-1/4 inches x 1-1/4 inches
• Installation Type: Screw-In
• Specification Met: UL
