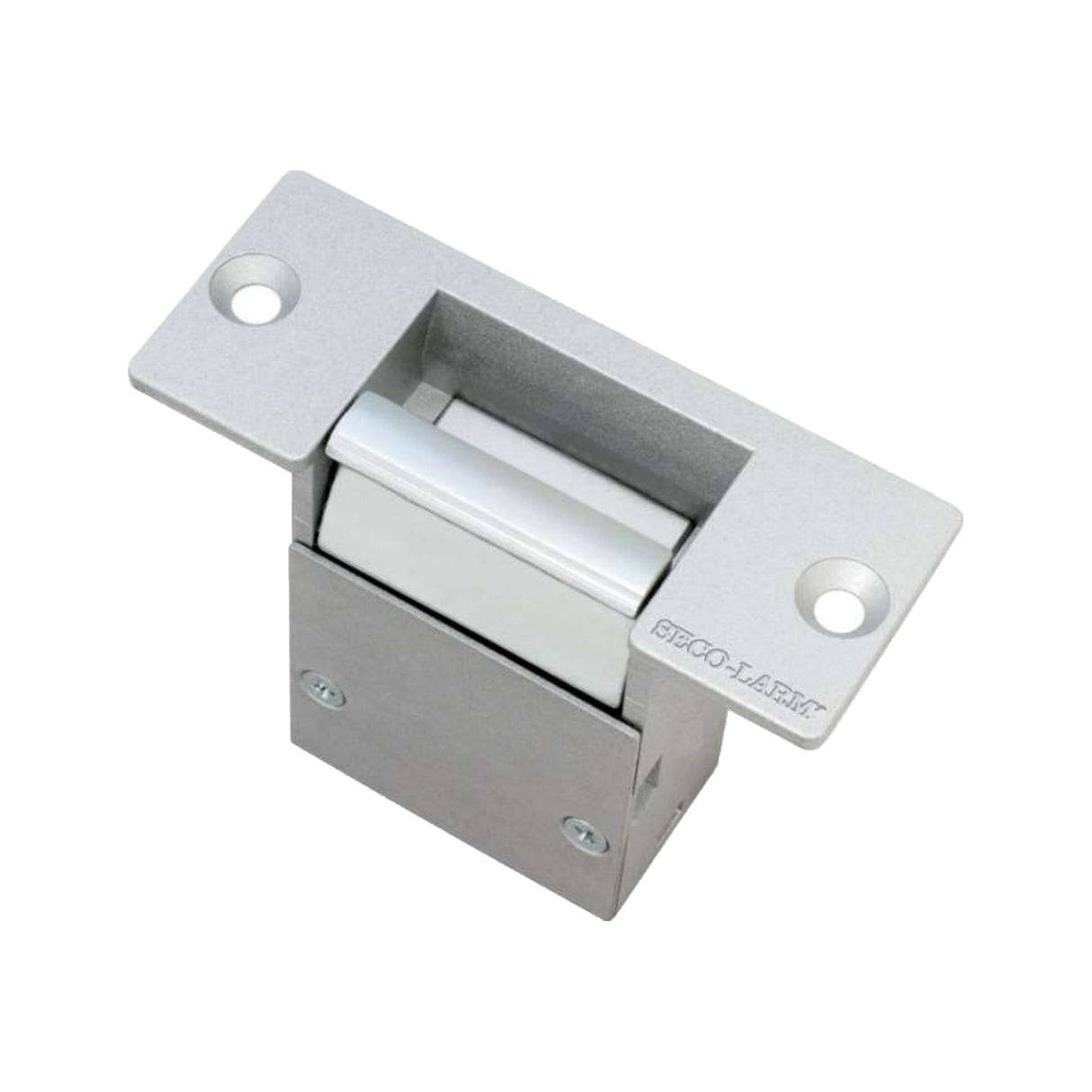

Seco-Larm SD-995A-D3Q Weatherproof Door/Gate Strike

Product Description

The Seco-Larm SD-995A-D3Q Weatherproof Door/Gate Strike is suitable for outdoor use for both gates and doors. It is fail-secure to remain locked even when power is lost and is reversible for right-or left-handed gates/doors. The strike has a zinc alloy body with corrosion-resistant case and moving parts. It includes complete mounting hardware.

• 12~24 VAC/VDC operation
• Current draw: 500mA@12VDC, 1A@24VDC
• Fail-secure operation – Door remains locked if power to the strike is lost

Product Highlights

The SECO-LARM SD-995A-D3Q is a high-quality, fail-secure electric strike designed to provide reliable security for wood and metal doors and gates.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-995A-D3Q

Technical Specifications

• Operating Voltage: 12~24 VAC/VDC
• Operation: Fail-Secure
• Current Draw: 500mA
• Latch throw: 0.5625" (15mm)
• Strike depth: 0.5625" (15mm)
• Keeper width: 1.625" (41mm)
• Design: Non-handed, reversible
• Static strength: 1,034-lb (470kg)
• Endurance: 250,000 Cycles (factory tested)
• IP Rating: IP42 Weather-resistant
• Operating humidity: 0~95%, non-condensing
• Operating Temperature: 14°~113° F (-10°~45° C)
• Faceplate dimensions: 1.4375"x3.5"x0.125" (35x89x3 mm)
• Holding Force: 1,034-lb (470kg)
• Product Type: Electric Strike
• Application Type: Door | Gate
• Installation Type: Residential | Commercial
• Voltage: 12-24V
• Power Type: AC | DC
• Mounting Type: Door Jamb | Flush Mounted | Mullion
• Weatherproof Rating: IP42 – Protected from small solids & dripping water | Rated for Indoor/Outdoor Usage
