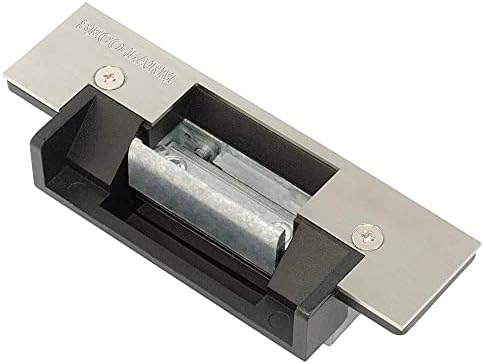

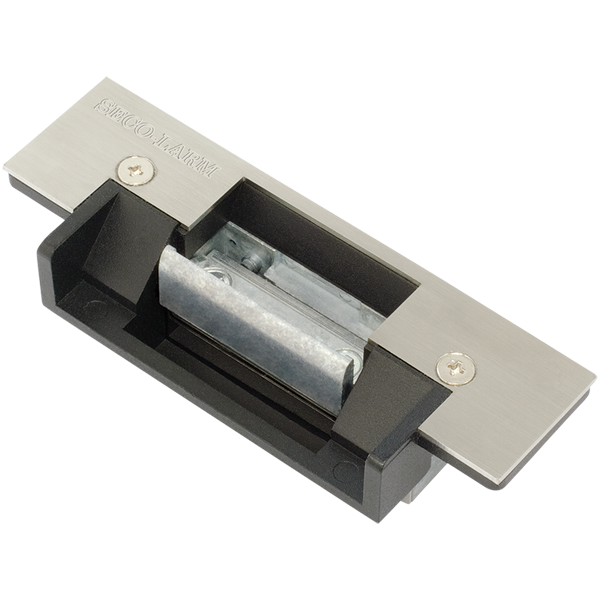

Seco-Larm SD-995A-A1Q Electric Door Strike with Horizontal Adjustment

Product Description

The Seco-Larm SD-995A-A1Q Electric Door Strike with Horizontal Adjustment features a miniature lock body for easy installation in wood and metal frames. It is reversible for right- or left-handed doors. The keeper is horizontally adjustable up to 1/4″ to compensate for warped doors and different-sized latch bolts.

• Fail-secure operation
• Reversible for right or left-handed doors
• Corrosion-resistant case and moving parts

Product Highlights

This electric door strike is ideal for high-traffic areas and provides reliable security with its durable stainless-steel faceplate and adjustable keeper.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-995A-A1Q
• Country of Origin: United States

Technical Specifications

• Operating Voltage: 8~16VAC/12VDC
• Current Draw: 16VAC: 800mA
• Operation Type: Fail-secure
• Latch Throw: 5/8" (16mm)
• Strike Depth: 1-1/2" overall (38mm)
• Keeper: Adjustable, max 1/4" (6mm)
• Design: Reversible, non-handed
• Static Strength: 1,000-lb (454kg)
• Operating Temperature: 14°F~113°F (-10°~45° C)
• Installation Type: Screw-In
• Recommended Uses For Product: high-traffic areas, secure applications, right and left-handed door compatibility
• Specification Met: ANSI
• Size: Pack of 1
• Manufacturer: Seco-Larm
• Part Number: SD-995A-A1Q
• Item model number: SD-995A-A1Q
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Max. Latch Throw: 5/8-inch (16mm)
• Latch Depth: 3/4-inch (19mm)
• Keeper Depth: 2-1/32 inches (16.8mm)
• Adjustable Keeper: Max. 1/4-inch (6mm)
• Faceplate Dimensions: 4-7/8 x 1-1/4 x 1/8 inches (124 x 32 x 3.2 mm)
• Approvals: CE, RoHS
• Current Draw 12VDC: 750mA
• Model: SD-995A-A1Q
• ANSI Faceplate size: 4-7/8" x 1-1/4" x 1/8" (124x32x3.2 mm)
• Tested to: 500,000 cycles
• Jaw strength: 1,000-lb (453kg)
