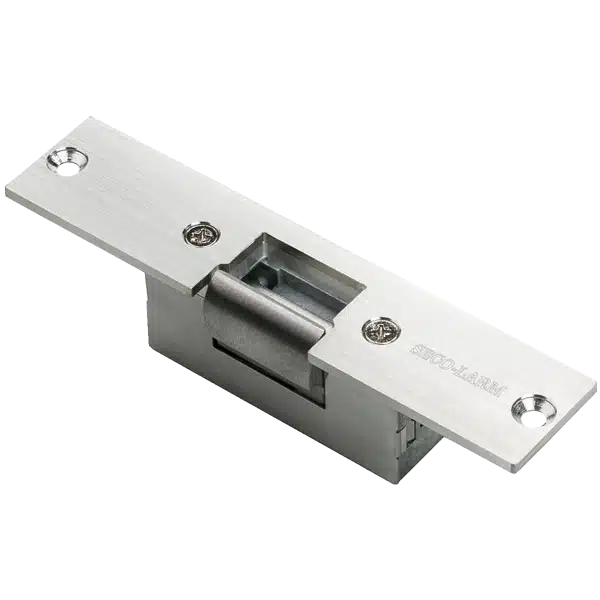

Seco-Larm SD-994A-A1SQ Reversible Electric Door Strike, Symmetric

Product Description

The Seco-Larm SD-994A-A1SQ reversible electric door strike adapts cylindrical lock sets to an electronic access-controlled locking system. It features a reversible faceplate for right-hand or left-hand doors and fail-secure operation. The strike is designed for wood frames and has a corrosion-resistant case and moving parts.

• Operating voltage: 8~16 VAC / 12VDC
• 1,000-lb (454kg) Static strength
• Tested to 500,000 cycles

Product Highlights

This electric door strike is ideal for converting cylindrical lock sets into an electronic access-controlled locking system.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-994A-A1SQ

Technical Specifications

• Operating voltage: 8~16 VAC/12VDC
• Operation type: Fail secure
• Current Draw: 800mA@16VAC, 750mA@12VDC
• Latch throw: 3/4″ (19mm)
• Strike depth: 11/2″ (38mm)
• Keeper depth: 21/32″ (16.8mm)
• Design: Handed: Reversible
• Faceplate: Symmetric
• Static Strength: 1,000-lb (454kg)
• Endurance: 500,000 cycles (factory tested)
• Operating Temperature: 14º~113º F (-10º~45º C)
• UPC: 676544016427
• Jaw Strength: 1,000 pounds (453kg)
• Model: SD-994A-A1SQ
• Connectivity: Wired
• Type: door strike
• Voltage: 12 V
• For use on: Wood doors
• Current draw: 800mA@16VAC 750mA@12VDC
