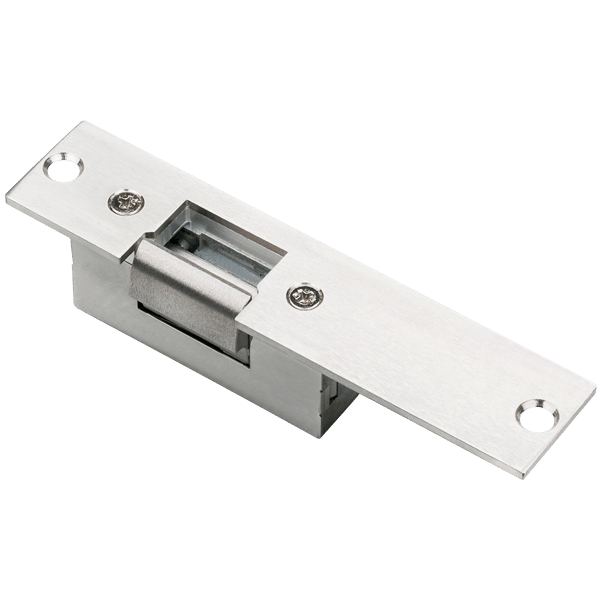

Seco-Larm SD-994A-A1AQ Reversible Electric Door Strike, Asymmetric

Product Description

The Seco-Larm SD-994A-A1AQ reversible electric door strike adapts cylindrical lock sets to an electronic access-controlled locking system. It features a reversible faceplate for right-hand or left-hand doors and fail-secure operation. Designed for wood frames, it provides 1,000-lb static strength and has been tested to 500,000 cycles.

• 8~16 VAC / 12VDC Operating voltage
• Current draw: 800mA@16VAC, 750mA@12VDC
• For use on wood frames with virtually any cylindrical door-locking system

Product Highlights

This electric door strike offers a convenient way to upgrade to an electronic access-controlled locking system. It is easy to install and suitable for wooden doors.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-994A-A1AQ

Technical Specifications

• Operating voltage: 8~16 VAC/12VDC
• Operation: Fail secure
• Current Draw: 800mA@16VAC, 750mA@12VDC
• Latch throw: 3/4″ (19mm)
• Strike depth: 11/2″ (38mm)
• Keeper Depth: 21/32 inch (16.8mm)
• Design: Handed: Reversible
• Faceplate: Asymmetric
• Static Strength: 1,000-lb (454kg)
• Endurance: 500,000 cycles (factory tested)
• Operating Temperature: 14º~113º F (-10º~45º C)
• Brand: Seco-Larm
• Special Feature: Reversible
• Lock Type: Electric
• Material: Stainless Steel
• Recommended Uses For Product: Any cylindrical-door locking system
• Style: Modern
• Number of Pieces: 1
• Shape: Rectangular
• Type: Asymmetric (off-center strike portion)
• Jaw Strength: 1,000 pounds (453kg)
• For use on: wood doors
• Compatibility: Can be used with virtually any cylindrical-door locking system
• Case: Corrosion-resistant case and moving parts
• Jaw strength: 1,000-lb (453kg)
• Tested to: 500,000 cycles
• Reversible: Reversible for right- or left-hand doors
