Seco-Larm SD-962AR-36A Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

Product Description

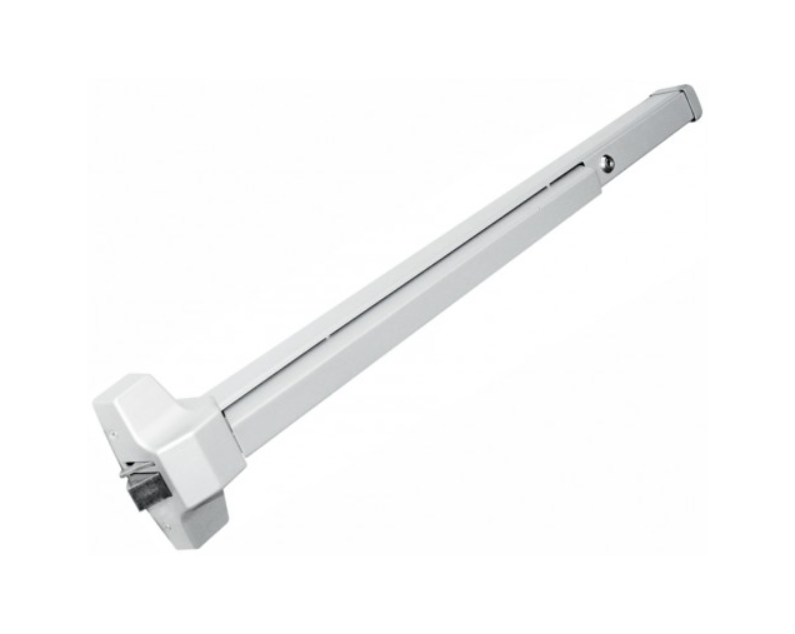

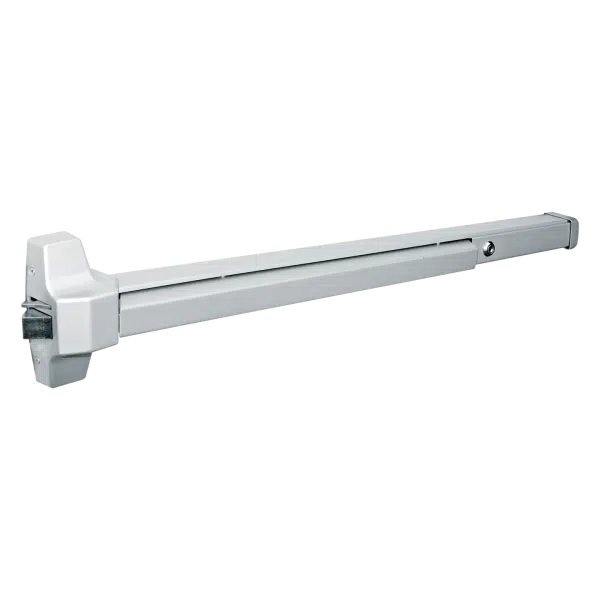

The Seco-Larm SD-962AR-36A Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside. It can be connected to an entry-type lever trim or to any physical locking device on the outside of the door in order to allow entry to authorized personnel.

• Pushbar is UL Listed in the U.S.
• Allows exit from inside while locked from outside
• Reversible, non-handed design

Product Highlights

This rim-type exit device fits doors from 30 to 48 inches wide and is suitable for metal or wood doors up to 1 3/4 inches thick. It features a stainless steel latch bolt and includes all hardware for typical installations.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-962AR-36A

Technical Specifications

• Door Type: 1-3/4" (44.5mm) thick, wood or metal
• Hand Type: Non-handed
• Latch Bolt: Stainless steel, 3/4" (19mm) throw
• Dead Latch: Stainless steel, 5/8" (16mm)
• Strike: For 5/8"(16mm) stop plus shim for 1/2" (12.7mm) stop
• Spring: Stainless steel
• Chassis: Steel
• Cover: High-density, rust-resistant alloy
• Rail Assembly: Steel
• End Cap: Steel
• Dogging: Allen-type dogging standard
• Brand: SECO-LARM
• MPN: SD962AR36A
• Material: Stainless Steel, Steel
• Model: SD962AR36A
• Item Height: 30 in
