Seco-Larm SD-7213-GSP rte plate with pneumatic timer green

Product Description

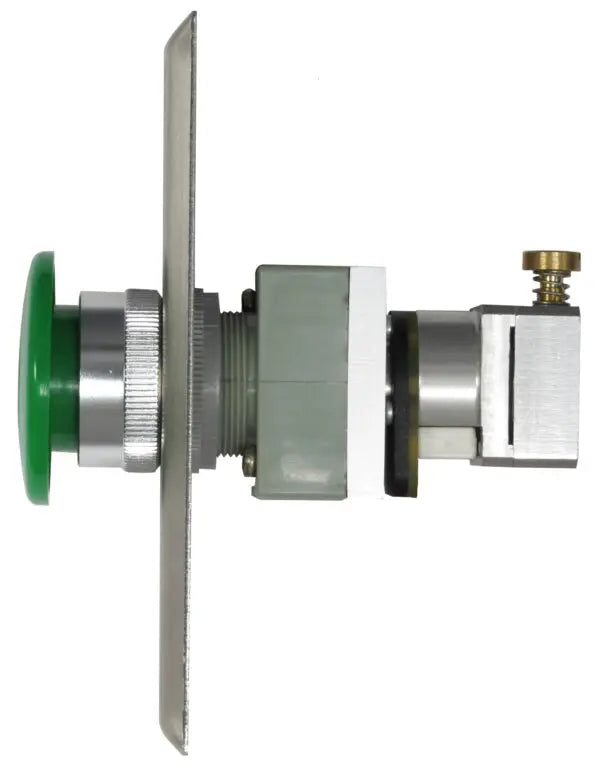

The Seco-Larm SD-7213-GSP ENFORCER request-to-exit plate with pneumatic timer is ideal for applications where providing power to a timer is inconvenient. The time is easily adjustable via a timing screw. It conforms to NFPA 101 fire codes for non-electrical breaking of contact and functions entirely without electricity.

• ETL, Conforms to UL Std. 294
• Functions entirely without electricity
• Reliable US-made pneumatic components
• Timer adjustable for 1~60 seconds

Product Highlights

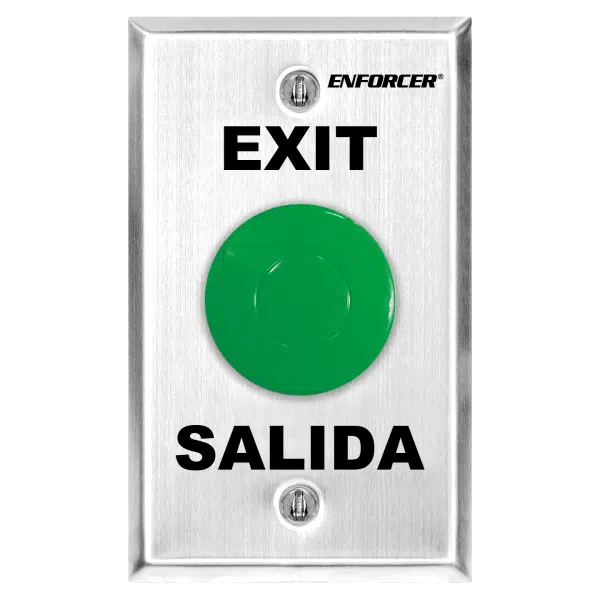

The request-to-exit plate is constructed with a stainless steel single-gang faceplate and has both English and Spanish printed on the faceplate.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-7213-GSP

Technical Specifications

• Faceplate: Single-gang, brushed stainless steel
• Mushroom cap button: Size: Standard
• Timer: Pneumatic: 1~60 seconds*
• Switching capacity: 5A@125VAC
• Wiring: Red: 2x N.C. #18 AWG 9" (230mm) for fail-safe White: 2x N.O. #18 AWG 9" (230mm) for fail-secure
• Destructive attack level: Level I
• Line security: Level I
• Endurance level: Level I
• Standby power: Level I
• Operating temperature: 32°~131° F (0°~55° C)
• Type: Request-to-Exit Plates with Pneumatic Timer
• Material: Stainless steel
• Product Features: Double pole single throw (DPST) switch
• NO/NC contact rated: 5A at 125VAC
• Reliable: American-made pneumatic components
• Conforms to: NFPA 101 Fire Codes for non-electrical breaking of contact
• Manufacturer Part #: SD-7213-GSP
• Manufacturer: SECO-LARM
• Newark Part No.: 33AK0647
