SECO-LARM SD-7202GC-PEQ Square Illuminated Pushbutton Request-to-Exit Plate

Product Description

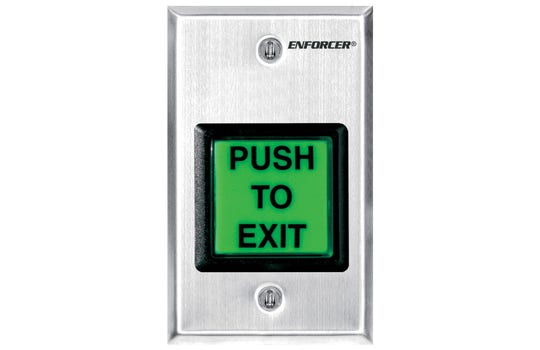

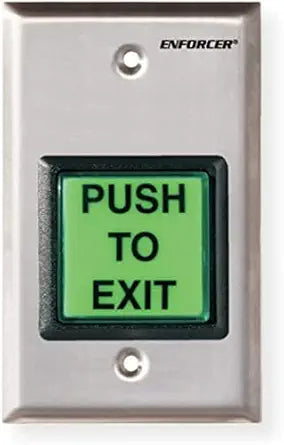

The SECO-LARM SD-7202GC-PEQ is a square illuminated pushbutton request-to-exit plate designed for easy operation in various environments. This unit features a prominent illuminated pushbutton with a clear 'PUSH TO EXIT' message. Users can switch the message language between English, Spanish, and French with the included interchangeable plates for accessibility. It comes equipped with five colored twelve-inch wire leads with spade lugs, simplifying installation.

• Message language options: English, Spanish, French
• Includes stainless-steel faceplate
• ETL listed, meets UL Std. 294

Product Highlights

This pushbutton plate is ideal for use in both commercial and residential settings, offering reliable performance and multiple language support.

Product Information

Standard Information

• Operating Voltage: 12~24VDC
• Faceplate: Brushed stainless

Technical Specifications

• IP Rating: IP65 Weatherproof
• Operating Temperature: -40°F~167°F (-40°C~75°C)
• Operation Mode: Push button
• Contact Type: Normally Open
• Connector Type: Spade
• Terminal: Spade
• Actuator Type: Push Button
• Contact Material: Stainless Steel
• Switch Type: Push Button
• Material: Brushed stainless
• Mounting Type: Panel Mount
• Specification Met: UL 294
• Current Draw: 10A at 250VAC
