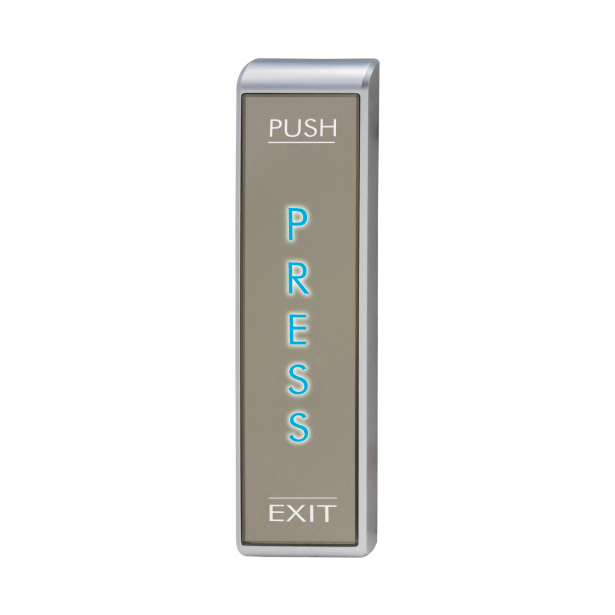

Seco-Larm SD-7093-SGDQ Illuminated Mullion Surface-Mount RTE Bar

Product Description

The Seco-Larm SD-7093-SGDQ is an illuminated mullion surface mount RTE bar that combines functionality with visibility. The illuminated button and backlit text ensures easy activation and clear indications. Press anywhere on the button to activate the contact. The button is only 1/2" thick. NO/NC contact rated at 1A@30VDC.

• Illuminated button covers entire front
• Backlit text for easy visibility
• Text glows BLUE when on standby and is GREEN when activated

Product Highlights

The SD-7093-SGDQ RTE bar ensures easy activation and clear indications for users, making it ideal for a variety of applications.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-7093-SGDQ

Technical Specifications

• Current Draw: 100mA@12VDC
• Operating voltage: 12VDC
• Contact Rating: 1A@30VDC
• SKU: SD-7093-SGDQ
• Manufacturer: Seco-Larm
• Model: SD-7093-SGDQ
• Type: Illuminated Mullion Surface-Mount RTE Bar
• Activation Method: Press anywhere on the button
• Button Thickness: 1/2 inch
• Contact Type: NO/NC
• Standby Color: Blue
• Activated Color: Green
• Brand: SECO-LARM
• Input Voltage: 12 V DC
• Product Type: Push Button
• Print/Message: Exit, Press, Push
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• Features: Surface Mount
• Button Size: 0.50"
