Seco-Larm SD-6276-SSVQ Piezoelectric Request-to-Exit Pushbutton Single-gang with Manual Override

Product Description

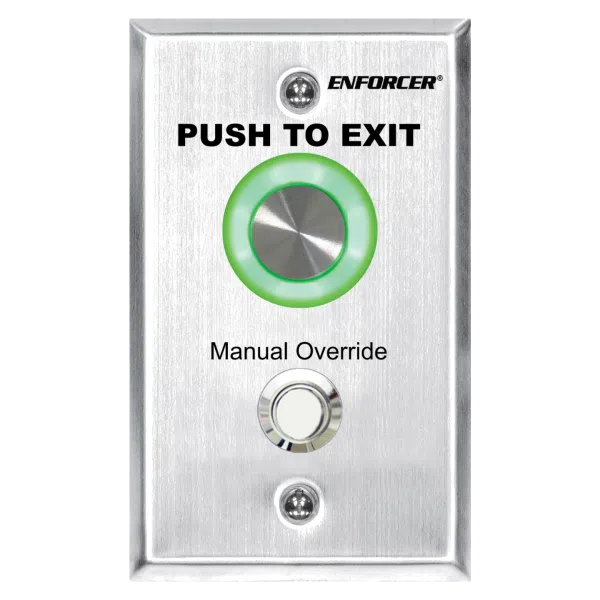

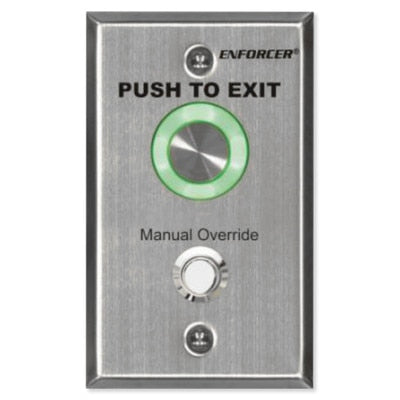

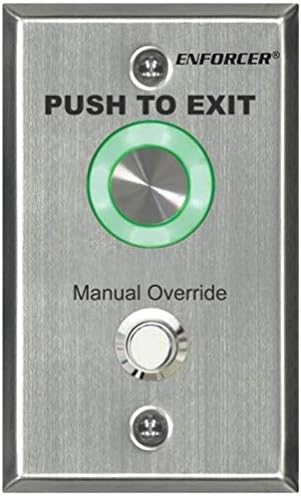

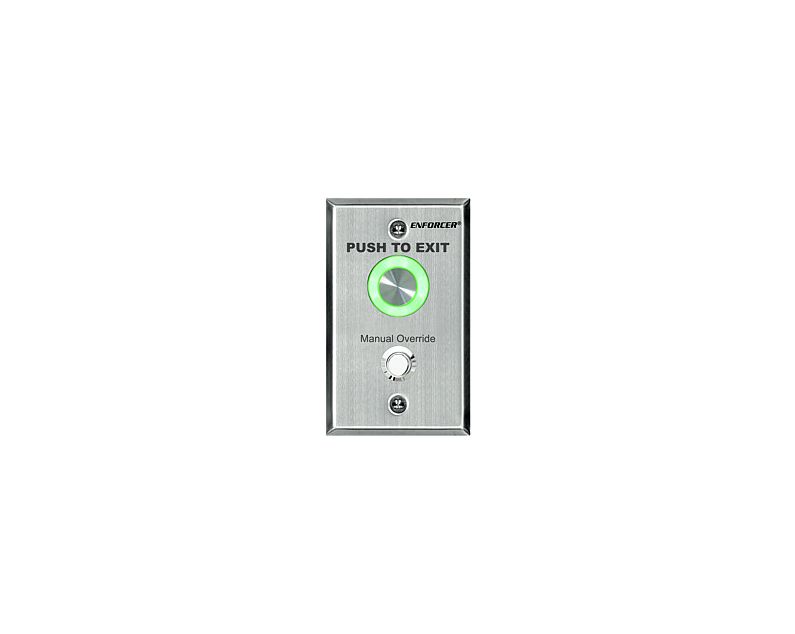

The Seco-Larm SD-6276-SSVQ piezoelectric request-to-exit pushbutton is a single-gang plate with manual override. The LED ring around the button changes from green to red or red to green when pressed. It is designed for indoor or outdoor use and includes a separate manual override button for use in case of a power failure.

• LED ring around button changes from green to red or red to green when the button is pressed
• Piezoelectric request-to-exit plates for indoor or outdoor use (IP65)
• Includes a separate manual override button for use in case of a power failure to the request-to-exit plate

Product Highlights

The SD-6276-SSVQ is a vandal-resistant, single-gang plate with a mechanical override button and programmable illumination. It features a timed or toggle output and an SPDT relay.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SD-6276-SSVQ

Technical Specifications

• Operating voltage: 12~24 VDC
• Current drain: 40mA@12VDC
• Contact rating: 2.5A@24 VAC/VDC
• Ring LED (Colors reversible via switch): Standby: Red/Active:Green
• Output time: 1~30 s, Toggle
• Destructive attack level: Level I
• Line security: Level I
• Endurance level: Level I
• Standby power: Level I
• Operating temperature: 32°~158°F (0°~70°C)
• Plate Material: Stainless steel
• IP Rating: IP65
