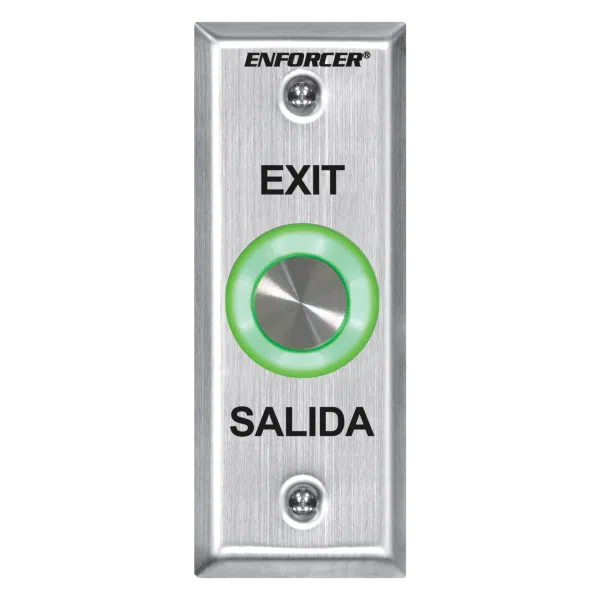

Seco-Larm SD-6176-SS1Q Outdoor Piezoelectric Request-to-Exit Pushbutton - Slimline

Product Description

The SECO-LARM SD-6176-SS1Q is a piezoelectric push button designed for request-to-exit applications, suitable for both indoor and outdoor use with an IP65 weatherproof rating. The push button features a programmable red/green LED ring that changes color when pressed, offering timed or toggle output. It includes a SPDT relay rated 2.5A@24 VAC/VDC with two individually programmable outputs (NO/NC).

• Piezoelectric push buttons for indoor or outdoor use (IP65)
• LED ring around button changes from green to red or red to green when the button is pressed
• Timed or toggle output

Product Highlights

This vandal-resistant, slimline pushbutton has "EXIT" and "Salida" printed on the plate and is ideal for access control systems.

Product Information

Standard Information

• Brand: SECO-LARM
• Manufacturer Part Number: SD-6176-SS1Q
• Country of Origin: United States

Technical Specifications

• Operating voltage: 12~24 VDC
• Current drain: 40mA@12VDC
• Contact rating: 2.5A@24 VAC/VDC
• Ring LED (Colors reversible via switch): Standby: Red Active:Green
• Output time: 1~30 s, Toggle
• IP Rating: Weatherproof IP65
• Operating temperature: 32º~158º F (0º~70º C)
• Plate Material: Stainless steel
• Model: SD-6176-SS1Q
• Type: Piezoelectric Request to Exit Push Button Timer
• MPN: SD-6176-SS1Q
• Brand: SECO-LARM
• UPC: 301152784634
• Country of Origin: United States
