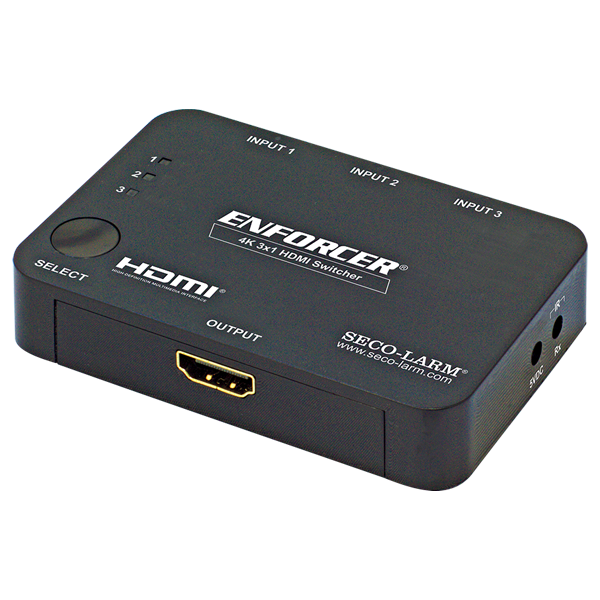

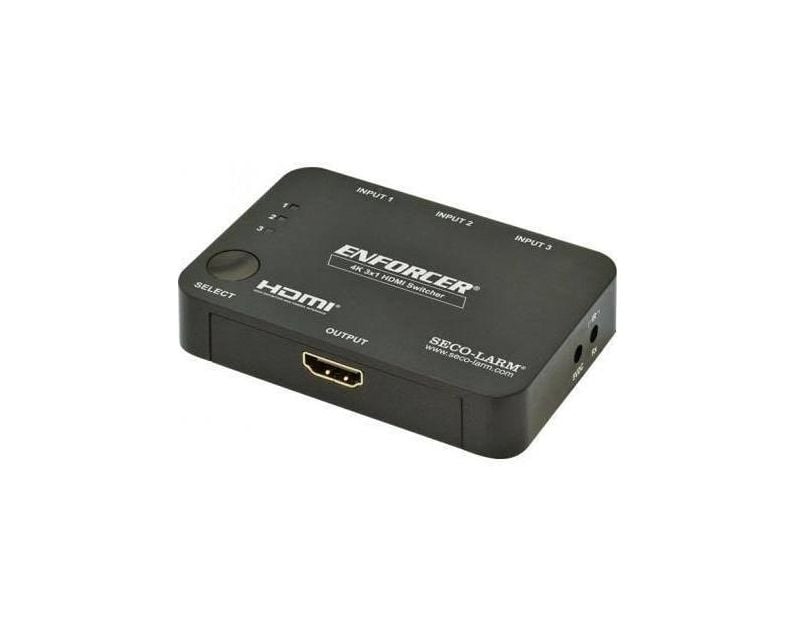

Seco-Larm MVS-AH31-01NQ HDMI Switcher with 3 HDMI Inputs, 4K

Product Description

The Seco-Larm MVS-AH31-01NQ HDMI Switcher adds up to three HDMI inputs to any high-definition TV or HDMI display. It supports up to 4K/2K resolution and 3D video. Individual status LEDs are included for each HDMI input. The switch automatically selects the active input. It also works with IR over HDMI Kit MVE-PN11-01Q.

• Add up to three HDMI inputs to almost any high-definition TV or HDMI display
• Supports up to 4K/2K resolution and 3D video
• Individual status LEDs for each HDMI input

Product Highlights

This HDMI switcher allows easy switching between multiple HDMI sources with HD resolutions of up to 4K/2K. A remote control is included.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: MVS-AH31-01NQ

Technical Specifications

• Video Formats Supported: High-speed HDMI®, HDCP 1.4
• Audio Formats Supported: LPCM, Dolby-AC3, DTS7.1, DSD
• Input DDC Signal: 5Vp-p (TTL)
• Maximum Single Link Range: 4K*2K@30hz
• Output Video: HDMI®
• Deep Color: 48bit
• Resolutions Supported: 4K/1080p/1080i/720p/576p/576i/480p/480i
• Video Amplifier Bandwidth: 10.2Gbps
• Video Input Connector: 3x HDMI® type A 19-pin female
• Maximum Input Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
• Video Output Connector: 1x HDMI® type A 19-pin female
• Maximum Output Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
• Operating Voltage: 5VDC
• Power Supply: USB power
• Current Draw: 150mA@5VDC
• Operating Temperature: 32°~104° F (0°~40° C)
• IR Pass-Through: 38kHz
• Operating Humidity: 20~90% RH (without condensation)
• ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
• Manufacturer: Seco-Larm
• SKU: MVS-AH31-01NQ
• Format: Digital
• In-Outputs: 3 - 1
• Video Inputs: HDMI
• Video outputs: HDMI
• Mount Options: Stand-Alone
• MPN: MVS-AH31-01NQ
