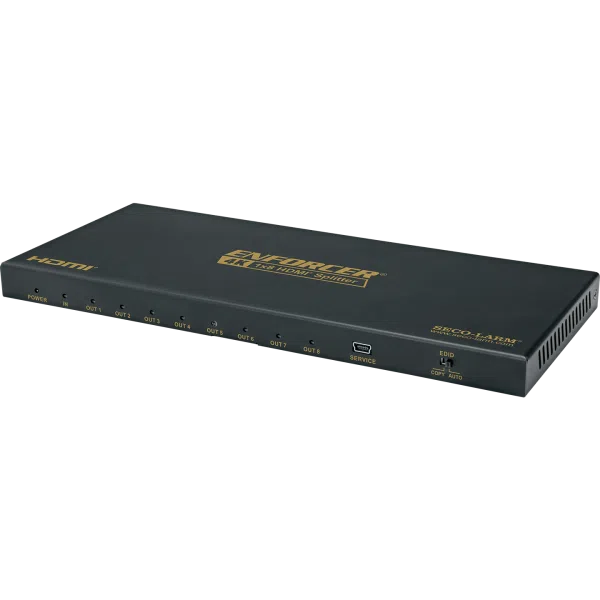

Seco-Larm MVD-AH18-01Q 4k HDMI Splitter - 8 HDMI Outputs

Product Description

The Seco-Larm MVD-AH18-01Q 4K HDMI Splitters allow one HDMI source to simultaneously transmit to up to eight different monitors, delivering digital audio and video signals with HD resolutions up to 4K@60Hz. LED indicators display power status and active outputs. The splitters can be daisy-chained up to four levels.

• Transmit an HDMI source to up to eight different HDMI displays
• Additional splitters can be daisy-chained for more outputs
• Supports up to 4K@60Hz resolution and 3D video

Product Highlights

Transmit HDMI source to multiple displays with 4K resolution support and daisy-chain capability.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: MVD-AH18-01Q

Technical Specifications

• Type: 4K HDMI Splitter
• Maximum single link range: 4K2K@60Hz
• Deep color: 24bit RBG / YCBCR 4:4:4
• Video formats supported: HDMI 2.0b, HDCP 2.2
• Audio formats supported: LPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
• Output video: HDMI
• Resolutions supported: 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Video Amplifier Bandwidth: 600MHz/18Gbps
• Video Input Connector: 1x HDMI Type A 19-pin female
• Max. Input Cable Length: 24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m)
• Video Output Connector: 8x HDMI Type A 19-pin female
• Max. Output Cable Length: 24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m)
• Operating Voltage: 12VDC
• Power Supply: 5VDC, 2A
• ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
• Current Draw: 2W
• Operating Temperature: 32°~104° F (0°~40° C)
• Operating Humidity: 20~90% RH (no condensation)
• Input Ports: 1 x HDMI
• Output Ports: 8 x HDMI
• Maximum Resolution: 4K @ 60Hz
• Data Rate: Up to 18 Gbps
• Format: Digital
• In-Outputs: 1 - 8
• Video Inputs: HDMI
• Video outputs: HDMI
• Mount Options: Stand-Alone
• Number of HDMI Inputs: 1
• HDMI Out: Yes
• Input Voltage (V DC): 5
• Product Type: Signal Splitter
• HDMI In: Yes
• Number of HDMI Outputs: 8
• Inputs: HDMI
• Number of Inputs: 1
• Outputs: HDMI
• Resolution: 4K; 1080P; 1080I; 720P; 576P; 576I; 480P; 480I
• Input Voltage: 5 V DC
