Product Description

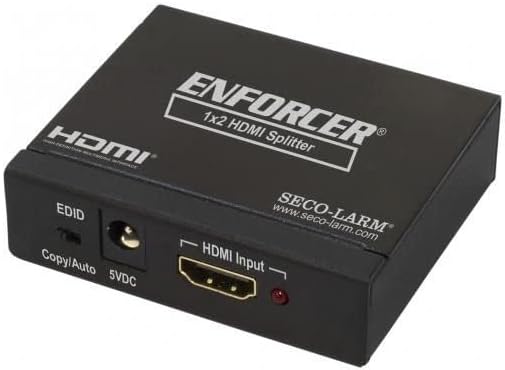

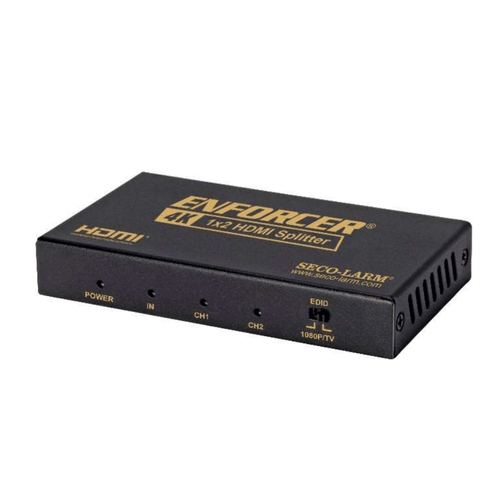

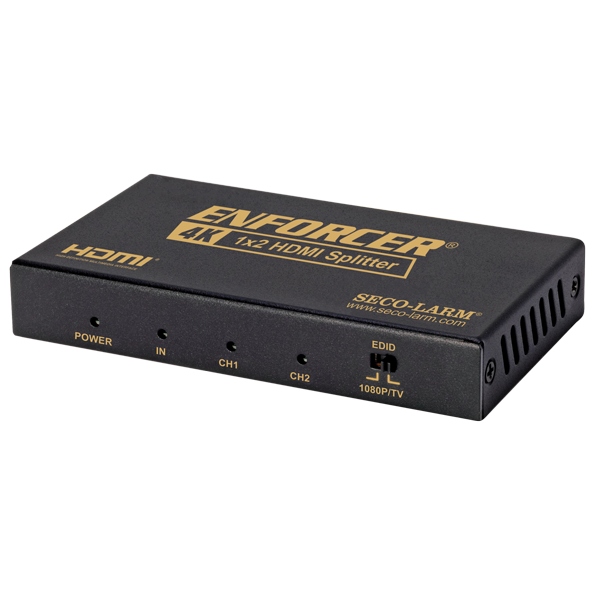

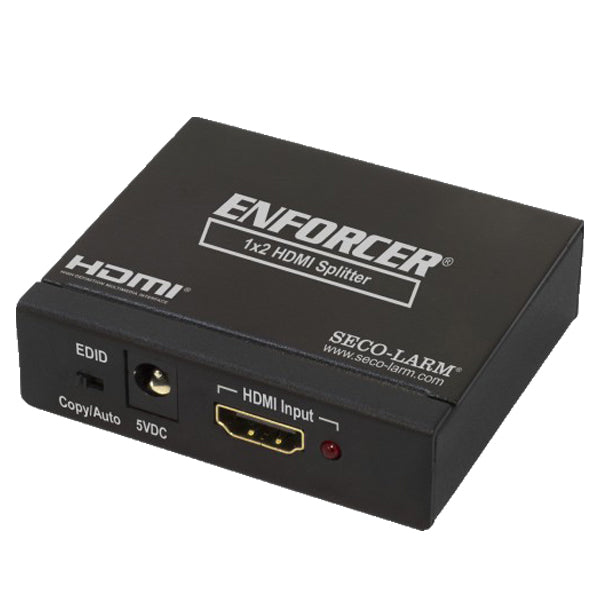

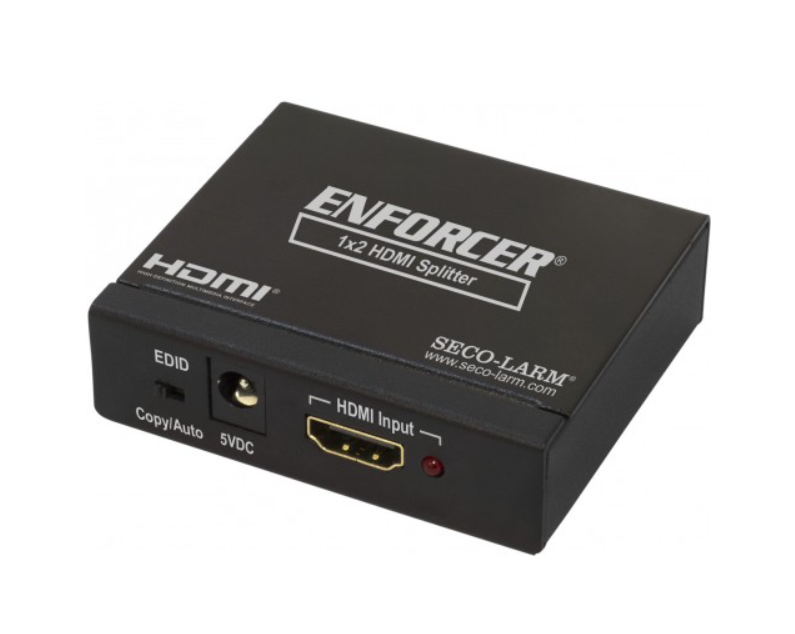

The Seco-Larm MVD-AH12-01Q ENFORCER 4K HDMI Splitter allows one HDMI source to simultaneously transmit to up to two different monitors, delivering digital audio and video signals with HD resolutions up to 4K@60Hz. An LED indicator displays power status, and the splitters can be daisy-chained up to four levels. It supports most HDMI devices.
- Transmits an HDMI source to up to two different HDMI displays
- Additional splitters can be daisy-chained for more outputs
- HDR Support
Product Highlights
Transmits one HDMI source to two displays with up to 4K@60Hz resolution. Features LED status indicators and daisy-chaining capability.
Product Information
Standard Information
-
Brand: Seco-Larm
-
Manufacturer Part Number: MVD-AH12-01Q
Technical Specifications
-
Type: 4K HDMI Splitter
-
Maximum Single Link Range: 4K*2K@60hz
-
Deep Color: 24bit RBG/YCBCR 4:4:4
-
Video Formats Supported: HDMI 2.0b, HDCP 2.2
-
Audio Formats Supported: LPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
-
Output Video: HDMI
-
HDR Support: Yes
-
Resolutions Supported: 4K/1080p/1080i/720p/576p/576i/480p/480i
-
Video Amplifier Bandwidth: 10.2Gbps
-
Video Input Connector: 1x HDMI Type A 19-pin female
-
Max. Input Cable Length: 24AWG: 50' (15m); 26AWG: 30' (10m); 28AWG: 16' (5m)
-
Video Output Connector: 2x HDMI Type A 19-pin female
-
Max. Output Cable Length: 24AWG: 50' (15m); 26AWG: 32' (10m); 28AWG: 16' (5m)
-
Operating Voltage: 5VDC
-
Power Supply: 1A@5VDC (2.1mm plug)
-
ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
-
Current Draw: 2W
-
Operating Temperature: 32°~104° F (0°~40° C)
-
Operating Humidity: 20~90% RH (no condensation)
-
Input Video Signal: 3.3V
-
Input DDC Signal: 5Vp-p (TLL)
