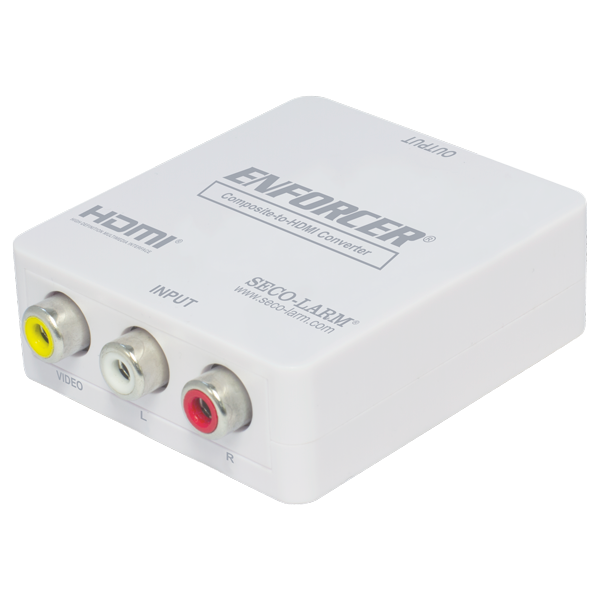

Seco-Larm MVA-TH01Q Composite-to-HDMI Converter with Scaler

Product Description

The Seco-Larm MVA-TH01Q Composite-to-HDMI Converter with Scaler converts video from analog devices with composite (RCA) outputs to HDMI displays. Active operation allows the conversion of formats as large as 1920x1080. It also has a L/R analog stereo input allowing the conversion of audio as well.

• Converts composite video and stereo audio to 720p or 1080p HDMI.
• Supports NTSC, PAL, and SECAM video inputs.
• Supports up to 1080p on HDMI output.

Product Highlights

This converter supports selectable 720p and 1080p upscaling, stereo audio input, and plug-and-play operation. Ideal for converting older devices to modern HDMI displays.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: MVA-TH01Q

Technical Specifications

• Supported Resolutions: 720p/1080p
• Video Input Signal: 1Vp-p
• Vertical Frequency: 60Hz
• Video Amplifier Bandwidth: 1.65Gbps
• Power Supply: 5VDC (USB)
• Operating Temperature: 32°~104° F (0°~40° C)
• Operating Humidity: 20~90% RH (no condensation)
• Video Formats Supported: NTSC / PAL / SECAM
• Audio Formats Supported: Stereo
• Video Input Connector: RCA Female
• Video Output Connector: HDMI Type-A 19-pin female
• Video Inputs: RCA
• Video outputs: HDMI
• Mount Options: Stand-Alone
