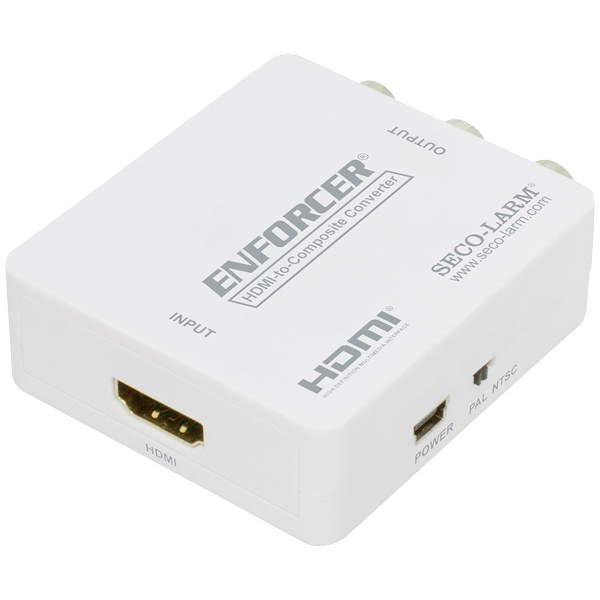

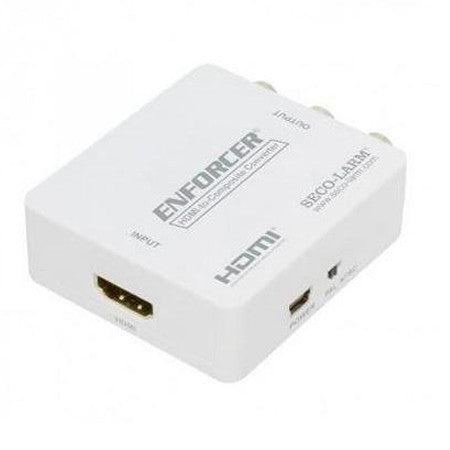

Seco-Larm MVA-HT01Q HDMI to Composite Converter

Product Description

The Seco-Larm MVA-HT01Q HDMI to Composite Converter converts HDMI to composite video and stereo audio. It supports input resolutions up to 1920x1080 and NTSC or PAL output. This converter features plug-and-play operation for ease of use. It allows viewing video from HDMI devices on analog TVs or projectors without HDMI inputs.

• Converts HDMI to composite video + stereo audio
• Supports input resolutions up to 1920x1080
• Supports NTSC or PAL output

Product Highlights

Converts HDMI to composite video and stereo audio with support for resolutions up to 1920x1080.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: MVA-HT01Q

Technical Specifications

• Video Formats Supported: High-speed HDMI, HDCP 1.2
• Audio Formats Supported: LPCM
• Output Video: NTSC/PAL
• Vertical Frequency: 50/60Hz
• Resolutions Supported: 1080p/1080i/720p/576p/576i/480p/480i
• Video Amplifier Bandwidth: 1.65Gpbs
• Video Input Connector: HDMI Type A 19-pin female
• Video Output Connector: RCA female
• Output Audio Connector: RCA female
• Power Supply: 5VDC (USB)
• Operating Temperature: 32°~104° F (0°~40° C)
• Operating Humidity: 20~90% RH (no condensation)
• ESD Protection: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
• Connectivity Technology: HDMI, USB
• Audio Input: RCA
