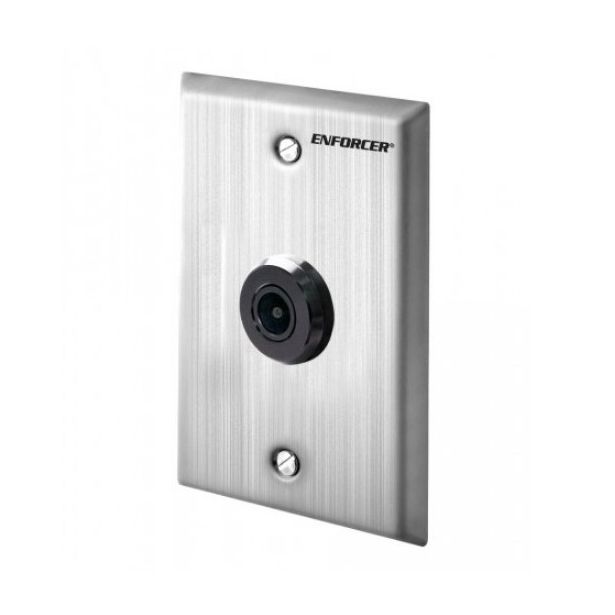

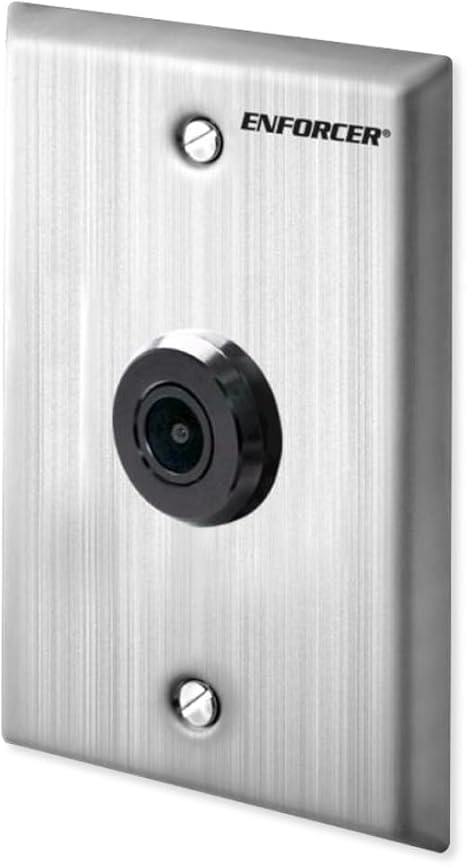

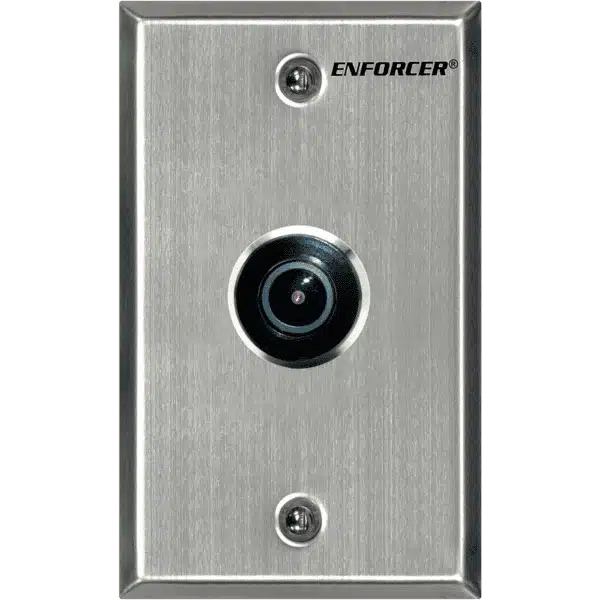

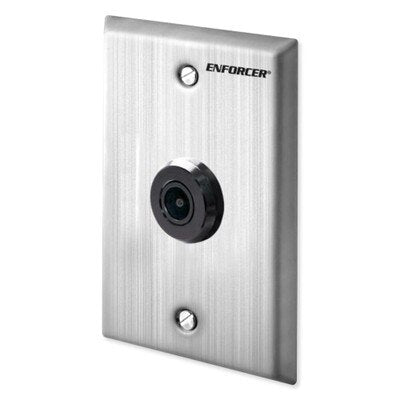

Seco-Larm EV-Y5105-N2SQ 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera

Product Description

The Seco-Larm EV-Y5105-N2SQ Enforcer vandal-resistant wall-plate camera can be installed inconspicuously in doors, walls, car bumpers, gates, entryways, and machinery. This camera supports HD TVI, CVI, AHD, and Analog formats. It features a 2.9mm lens with 155° viewing angle and a 1/2.8" 2MP Sony STARVIS CMOS.

• Supports HD TVI, CVI, AHD, and Analog formats
• Features a 2.9mm lens with 155° viewing angle
• Vandal-resistant and waterproof IP67 rated

Product Highlights

The Seco-Larm Enforcer camera provides discreet surveillance with a wide angle lens and supports multiple video formats. Ideal for various indoor and outdoor applications.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: EV-Y5105-N2SQ

Technical Specifications

• Type: Wall-plate camera
• Image sensor: 1/2.8″ 2MP Sony STARVIS CMOS
• Video Output Format: HD TVI, CVI, AHD, Analog (CVBS)
• Resolution: 1080p
• Viewing Angle: 155°
• Effective Pixels: 1920×1080
• 2DNR: Yes
• D-WDR: Yes
• Minimum Illumination: Color: 0.01Lux, BW: 0.001Lux
• Scanning System: 2:1 Interface
• Sync: Internal
• FPS: 30FPS
• Lens: 2.9mm
• F Stop: 2.0
• S/N Ratio: 50dB
• Operating Voltage: 12VDC
• Current Draw: 130mA±15%
• Gamma Correction: 0.45
• Gain Control: Auto
• IP Rating: Waterproof IP67
• Operating Temperature: 14°~122° F (-10°~50° C)
• Formats: TVI (Default) / CVI / AHD / Analog
• Plate Type: 1 Single-gang, 1 slimline
• OSD (On-Screen Display): Yes
• External OSD Control: Yes
• Video Output: 1.0Vp-p Complex video, 75Ω
• Camera Body Weight: 2.8-oz (80g)
• Credentials: RoHS, FCC, CE
• NDAA Compliance: No
• Brand: SECO-LARM
• Digital Noise Reduction: 2D
• Weatherproof: IP67
• Angle of View: 155°
• Lens Size: 2.9mm
• Camera Signal: Analog, HD-AHD, HD-CVI, HD-TVI
• Lens Type: Fixed
• Wide Dynamic Range: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
