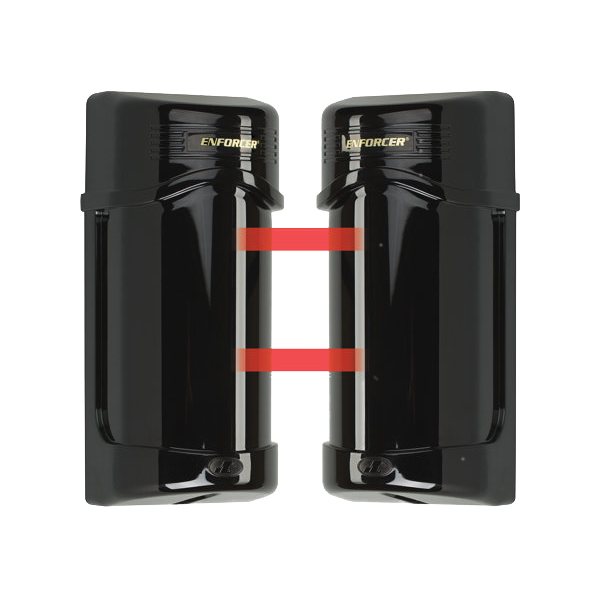

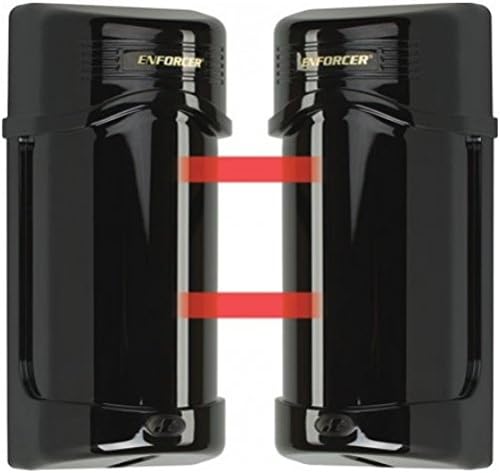

Seco-Larm E-960-D190Q Twin Photobeam with Laser Beam Alignment, 190ft outdoors

Product Description

The Seco-Larm E-960-D190Q long range photobeam detectors are easy to install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors. The weatherproof (IP55) case has sunlight filtering for indoor and outdoor use. Twin infrared beams minimize false alarms. Interruption time is adjustable.

• Built-in laser beam alignment system speeds accurate, reliable positioning
• Twin infrared beams provide reliable perimeter security, minimizing false alarms
• Lensed optics reinforce beam strength & provide excellent immunity to false alarms

Product Highlights

The Seco-Larm E-960-D190Q provides reliable perimeter security with easy installation and laser beam alignment. Suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: E-960-D190Q
• Country of Origin: US

Technical Specifications

• Type: Twin Photobeam Detectors with Laser Beam Alignment
• Current Draw: 70mA
• Sensing Range: Outdoor- 190′ (60m), Indoor- 390′ (120m)
• Operating Voltage: 10~30VAC/VDC (Non-polarized)
• IP Rating: IP55 Weatherproof
• Interupt Speed: 50msec~700msec (variable)
• LEDs – Red: Alarm LED (Receiver) ON: When an alarm is initiated
• LEDs – Yellow: ON: When receiver’s signal is weak or when beam is broken
• LEDs – Green: Operation LED (transmitter & receiver) ON: When power is applied.
• Detection System: Simultaneous break of 2 beams
• Alarm Output: NO/NC relay, 1A @ 120VAC, min. 1 sec.
• Tamper Output: NC switch, 1A@120VAC
• Case material: PC Resin
• Laser Wavelength: 650nm
• Operating Temperature: -13º~+131º F (-25º~+55º C)
• Laser Output Power: <5mW
• Alignment Angle: Horizontal (+/-)90º, Vertical: (+/-)5º
• MPN: E-960-D190Q
• UPC: 676544000822
• Range: 190 Foot
• Detection Method: Simultaneous break of 2 beams
• Interrupt Speed *: 50msec~700msec (variable)
• Alarm LED: Red LED (Receiver) ON: When an alarm is initiated
• Tuning LED: Yellow LED (Receiver) ON: When alignment is successful
• Operation LED: Green LED (transmitter and receiver) ON: When power is applied
• Case: PC Resin
• Model: E-960-D190Q
• Hardwired: Hardwired
• Beam Configuration: Twin infrared beams
• Tamper Circuit: N.C. included
• Power Supply: Non-polarized inputs
• Installation: Easy, with built-in laser alignment
• Adjustability: Interruption time adjustable
• SKU: E-960-D190Q
• Manufacturer: Seco-Larm
• Scene: Indoor, Outdoor
• Brand: SECO-LARM
