Seco-Larm E-941SB-600 600-lb electromagnetic lock, UL Listed

Product Description

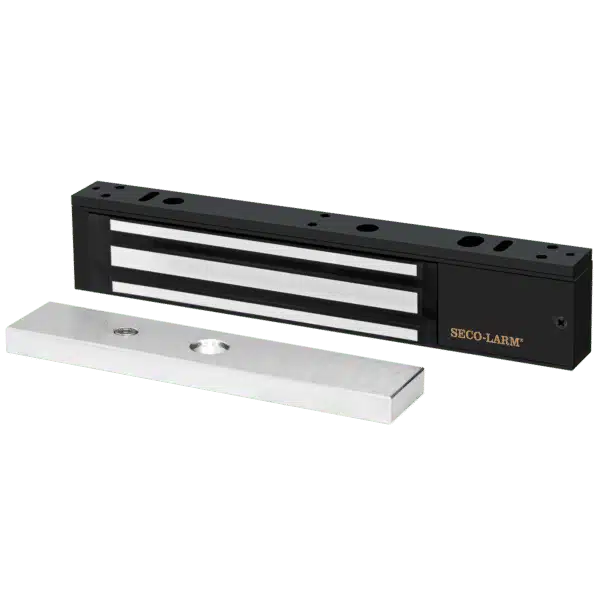

The Seco-Larm E-941SB-600 electromagnetic lock secures doors against unauthorized entry. When powered, it creates a strong magnetic field, attracting the steel armature plate mounted on the door. Deactivation releases the door without residual magnetism. It is ideal for access control systems and securing entryways.

• 600-lb (272kg) Holding force
• No residual magnetism
• MOV Surge protection

Product Highlights

Electromagnetic lock with 600-lb holding force, surge protection, and selectable 12/24VDC operation for access control and security.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: E-941SB-600

Technical Specifications

• Operating Voltage: 12/24 VDC (selectable)
• Current Draw: 500mA@12VDC, 250mA@24VDC
• Holding Force: 600-lb (272kg)
• Dimensions – Magnet: 9-13/16"x1-11/16"x1" (250x43x25 mm)
• Dimensions – Armature Plate: 7-1/4"x1-1/2"x1/2" (185x38x12 mm)
• Operating Humidity: 0~85 (non-condensing)
• Operating Temperature: 32°~120° F (0°~49° C)
• Lock Surface Temperature: ≤ Ambient temperature ± 68° F (20° C)
• Special Feature: No residual magnetism
• Lock Type: Electromagnetic
• Material: Alloy Steel, Aluminum
• Style: Modern
• Included Components: Magnet
• Model Name: Single Door Electromagnetic Lock
• Manufacturer: Seco-Larm
• Item model number: E-941SB-600
• Special Features: No residual magnetism
• Batteries Included?: No
• Batteries Required?: No
