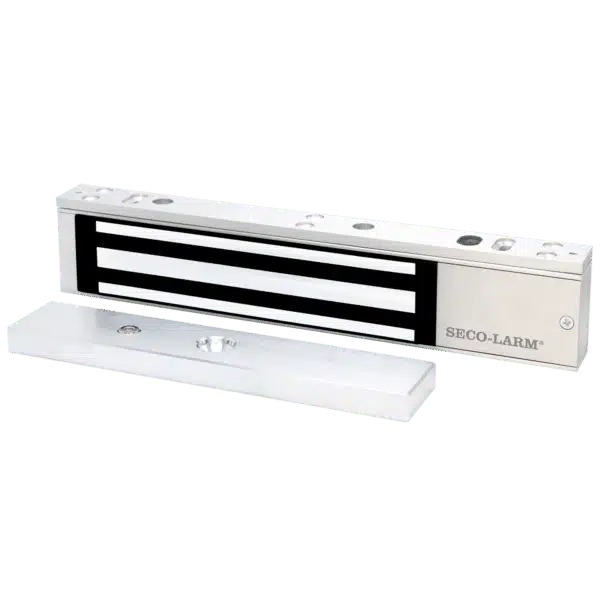

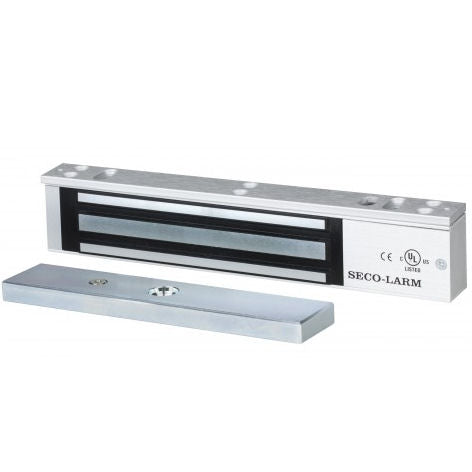

SECO-LARM E-941SA-600 Electromagnetic Lock 600-lb

Product Description

The SECO-LARM E-941SA-600 is an electromagnetic lock that provides a secure solution for door entry. It uses a powerful magnetic field to hold the steel armature plate against the door, making unauthorized access difficult. When the power is turned off, the door functions normally without any leftover magnetism.

• 600-lb (272kg) holding force
• No residual magnetism when deactivated
• Includes MOV surge protection

Product Highlights

This electromagnetic lock is designed for security in various settings.

Product Information

Standard Information

• Manufacturer: SECO-LARM
• Part Number: E-941SA-600

Technical Specifications

• Operating Voltage: 12/24 VDC (selectable)
• Current Draw: 500mA@12VDC, 250mA@24VDC
• Holding Force: 600-lb (272kg)
• Magnet Dimensions: 9-13/16 x 1-11/16 x 1 inches (250x43x25 mm)
• Armature Plate Dimensions: 7-1/4 x 1-1/2 x 1/2 inches (185x38x12 mm)
• Operating Humidity: 0~85% (non-condensing)
• Operating Temperature: 32°F~120°F (0°C~49°C)
• Surface Temperature: Ambient temperature ± 68°F (20°C)
• UL 1034 Rating Static Strength: 500-lb
• UL 1034 Rating Dynamic Strength: 50 ft-lb
• UL 1034 Rating Endurance: 250,000 cycles
• Batteries Included: No
• Batteries Required: No
• Certification: UL, ULC, CE
• RoHS Compliance: Yes
• Unit Weight: 4-lb 6-oz (2kg)
• Bond Sensor: Yes
• Status LED: Yes
• UNSPSC Code: 46171600
